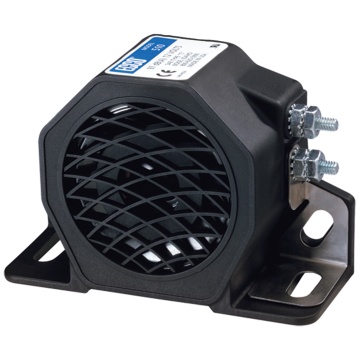

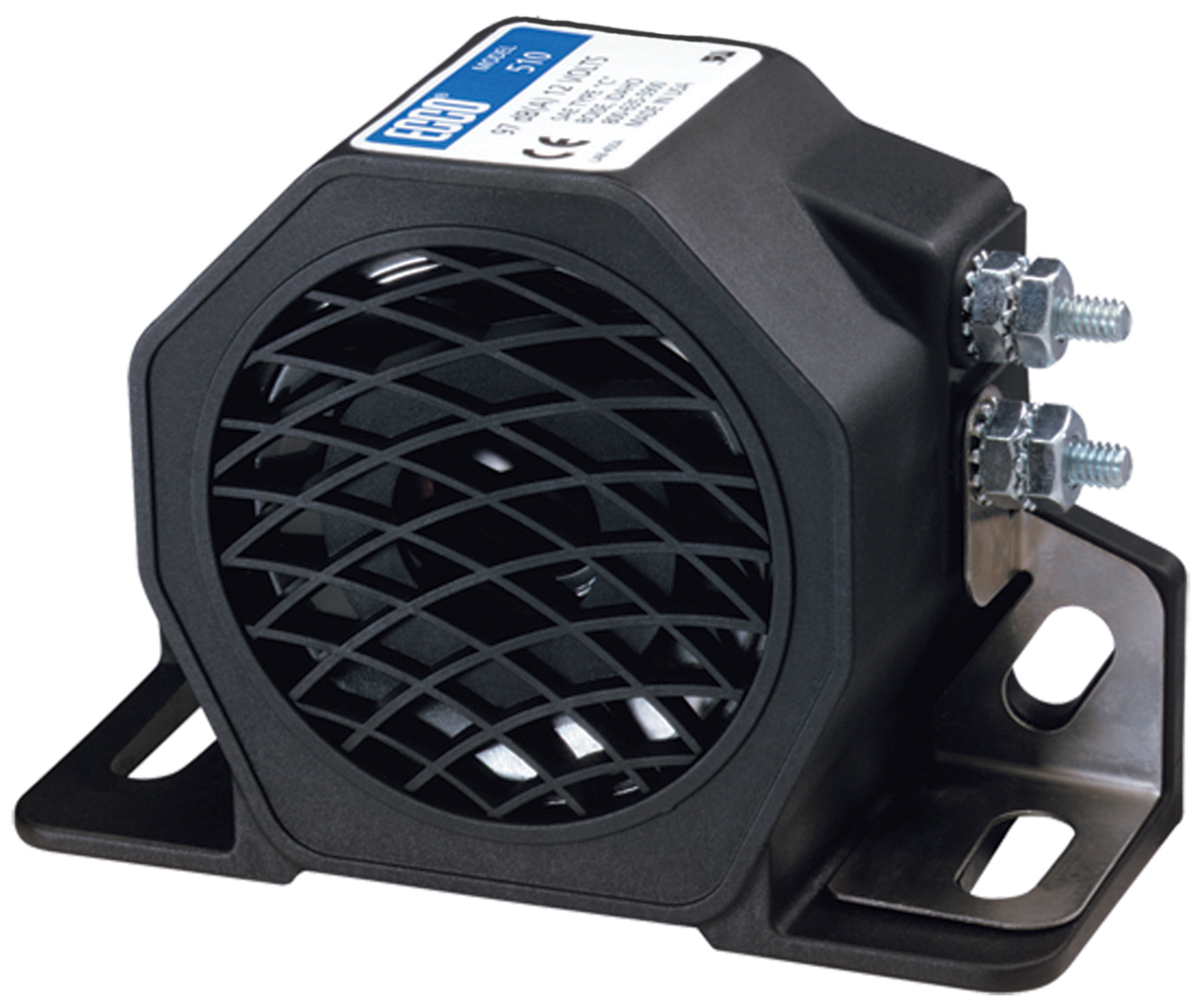

ECCO® 12-24V Surface Mount Back-up Alarm

• 500 series smart alarm
• Compact
• Cost effective
• Glass filled nylon housing
• Epoxy-encapsulated electronics
• Exceptional durability
• Protection against moisture,
  dust and vibration
• Measures ambient noise
  and adjusts sound levels
• Creates a volume that is safe without
  being annoying or contributing to noise pollution
• Eliminates the need for constant manual adjustment
• Helps prevent intentional alarm disconnection
• Universal mounting bracket maximizes location options
• Self grounding (except 575)
• Temperature range: -40°F to +185°F (-40°C to +85°C)

Specifications:

• Mount: 2 Bolts
• Decibal: 82 - 102 db
• Approval: CE, R10, UL, IP65
• Height: 2.8"
• Length/Width: 4"
• Depth: 1.6"
• Warranty: 2 years
• Voltage: 12-24
• Amps: 0.4

Alarms Available:

• 510 - 12V, 97dB(A), .02 Amps, Type C - $23.55
• 520 - 12-24V, 97dB(A), .02 Amps, Type C - $26.50
• 505 - 12-24V, 87dB(A), .01 Amps, Type D - $23.90
• 530 - 12-24V, 102dB(A), 1.0Amps, Type F - $30.90
• 575 - 12-24V, 107dB(A), 0.9Amps, Type B - $37.80
• 585 - 12-48V, 97dB(A), .01 Amps, Type C - $30.95
• SA950 - Smart Alarm, 12-24V, 82-102dB(A), .04 Amps - $51.85
• SA951 - Smart Alarm, 12-48V, 77-97dB(A), .02 Amps - $60.85
