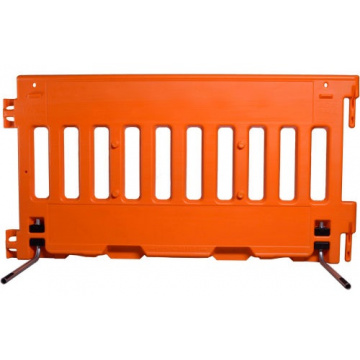

Trafix Devices ADA Wall 57000-AO-HIT1

Product Description

• Creates a hand guided safe passage
• Meets ADA requirements
• Passed MASH testing
• Eligible as TL-3 longitudinal channelizing device
• Made of UV stabilized, high density polyethylene
• Can quickly and easily link together in 6 foot sections
• Flexibility in creating a safe pedestrian pathway
• Durable double walled
• Non-flexible and lightweight design
• Easy to lift on and off the truck
• Ten molded-in vertical windows in each wall
• Guide dogs can see what is on the other side of the wall
• Windows allow for wind load reduction, added strength and stability,
  and reduces overall weight
• Ergonomic handrail provides a comfortable
  and secure guide through the workzone
• Locations on each wall for 2 barricade lights
• Each wall has 4 molded-in stacking lugs
  for secure transport and storage
• Each wall comes with 2 Step-N-Deploy legs securely installed
  at the bottom of each wall section
• Legs can be quickly and easily deployable
  with the toe of a boot

• UV inhibitors to minimize fading
• Stackable for easy storage and transportation
• Blow molded connectors provide strength and flexibility

• Linked ADA Walls can be rotated ≈120°
• Dimensions: 72"(L) x 3"(W) x 38"(H)
• Weighs only 23 lbs.

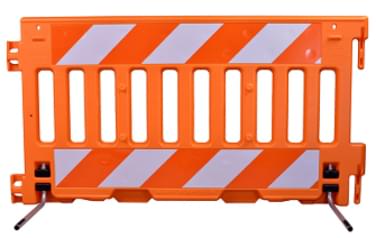

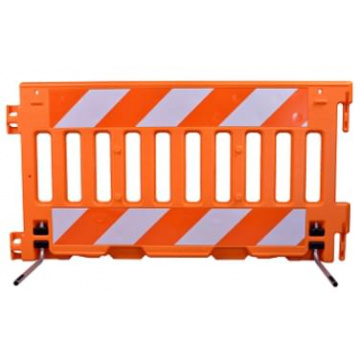

Reflective Sheeting Available:

• Top panel only (left or right slant)
• Top & bottom panels (left or right slant)
• One or both sides of wall (left or right slant)
