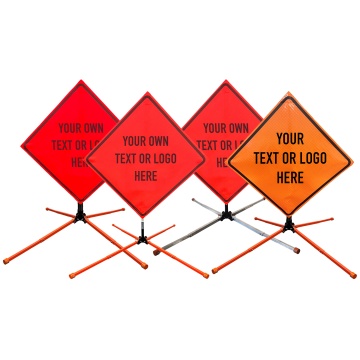

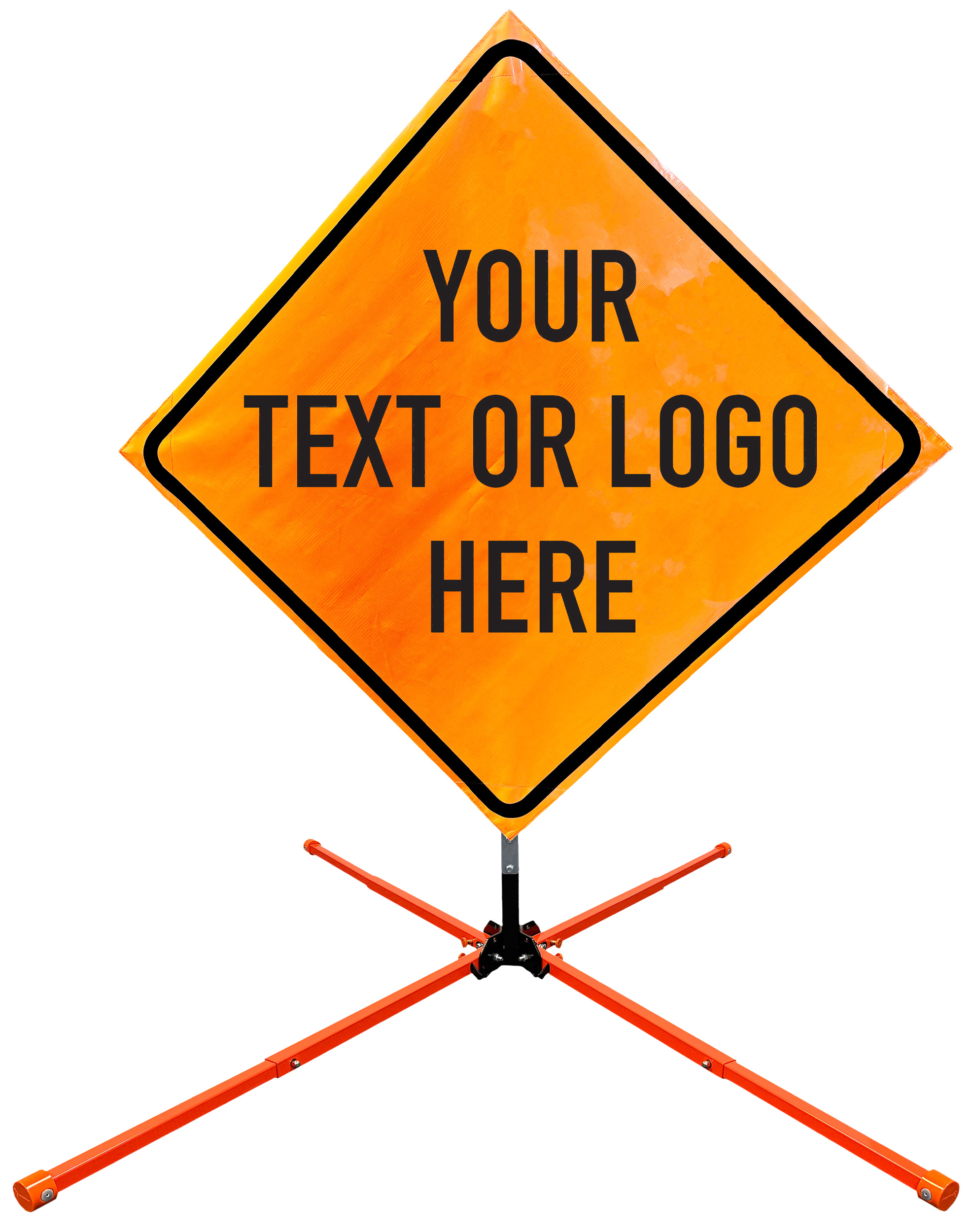

Custom Roll Up Sign & Stand Kit - OrangeGear® RSNR36CUSTOM-100-4LSU

The OrangeGear® Custom Roll-Up Sign & Stand Kit gives contractors, municipalities, and traffic control crews a fully branded, job-ready signage solution — built tough, sized right, and compliant with MUTCD and MASH standards. Each kit bundles your choice of a custom-printed sign with a matching four ...Read more
$118.90

Stand Model
Sign Size
Sign Material

- Click "Add to Cart" button below
- Go to Artwork Upload page to upload artwork +/or text
- Remember Artwork ID # and enter in Additional Info at checkout
- We only screenprint in black

+
–
The add to cart button will appear once you select the values above
  • Description
  • More Info

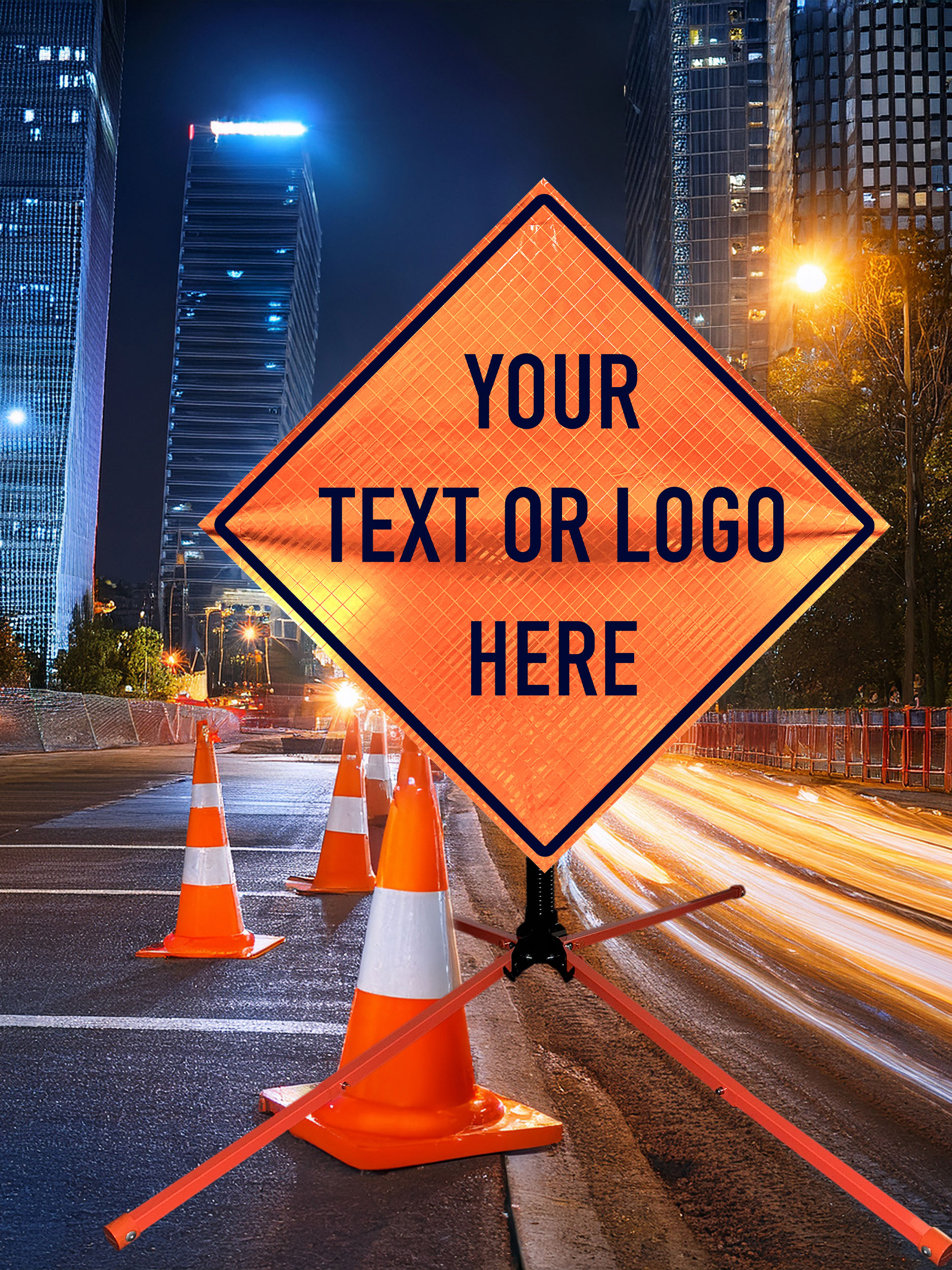

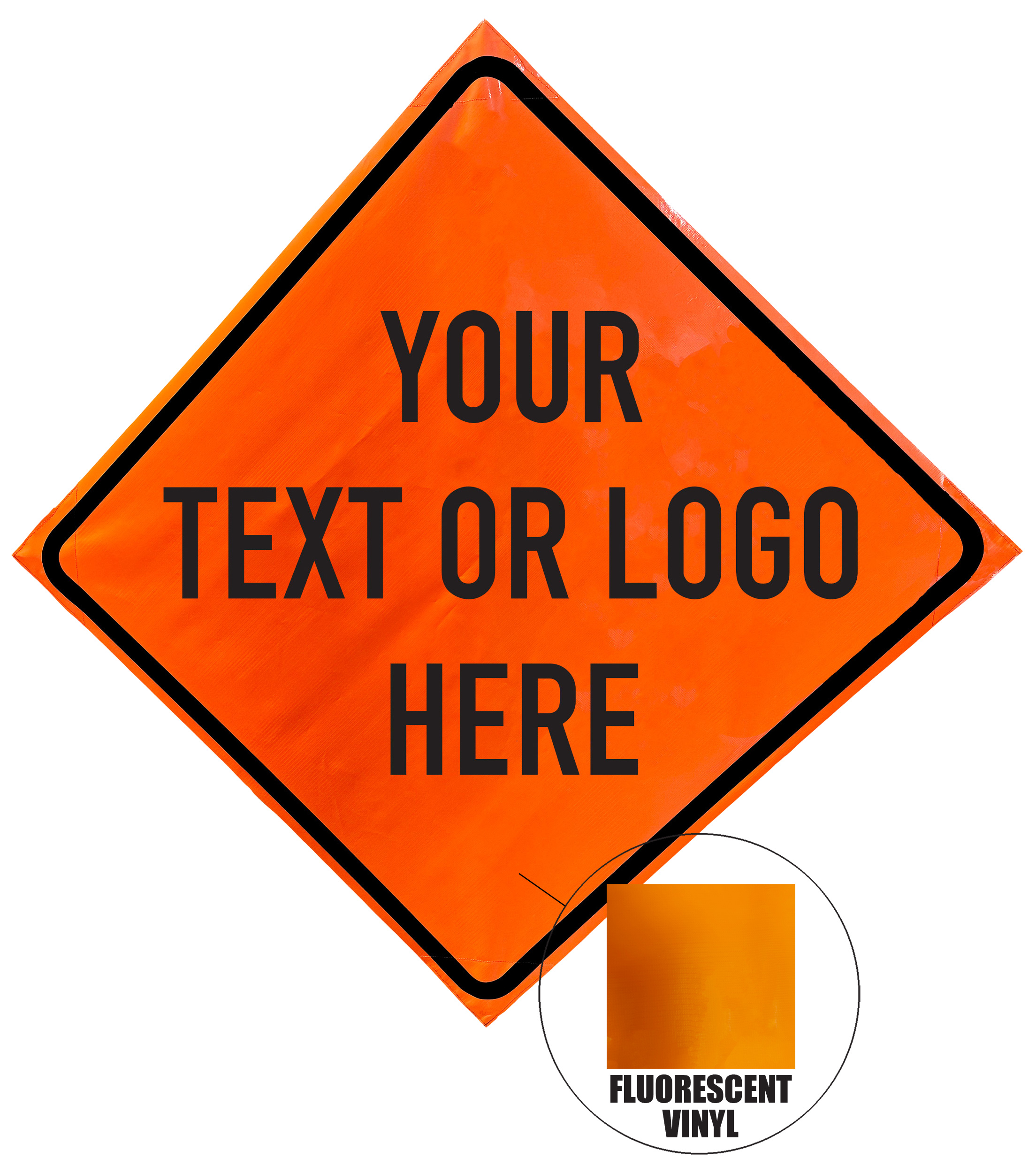

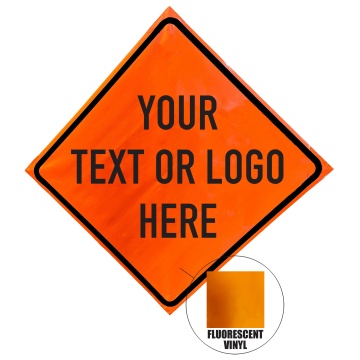

The OrangeGear® Custom Roll-Up Sign & Stand Kit gives contractors, municipalities, and traffic control crews a fully branded, job-ready signage solution — built tough, sized right, and compliant with MUTCD and MASH standards. Each kit bundles your choice of a custom-printed sign with a matching four-legged stand and a pair of orange fiberglass cross ribs, so everything you need arrives together. Signs are available in two sizes: 36" x 36" or 48" x 48" and three materials: a 15 oz fluorescent safety orange woven mesh for maximum airflow and wind resistance, a fluorescent orange non-reflective vinyl for daytime-only applications, or 3M™ High Intensity reflective vinyl certified to ASTM standards for 24-hour visibility. Your uploaded artwork or text is screen-printed in black directly onto the sign. Both vinyl options feature a rear anti-kiting strap that fastens to the cross ribs to prevent the sign from flapping or lifting in the wind.

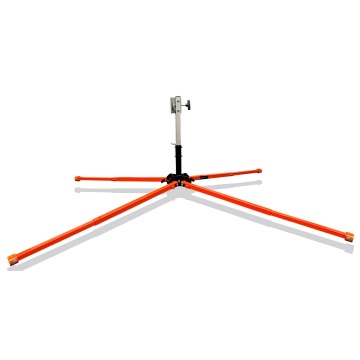

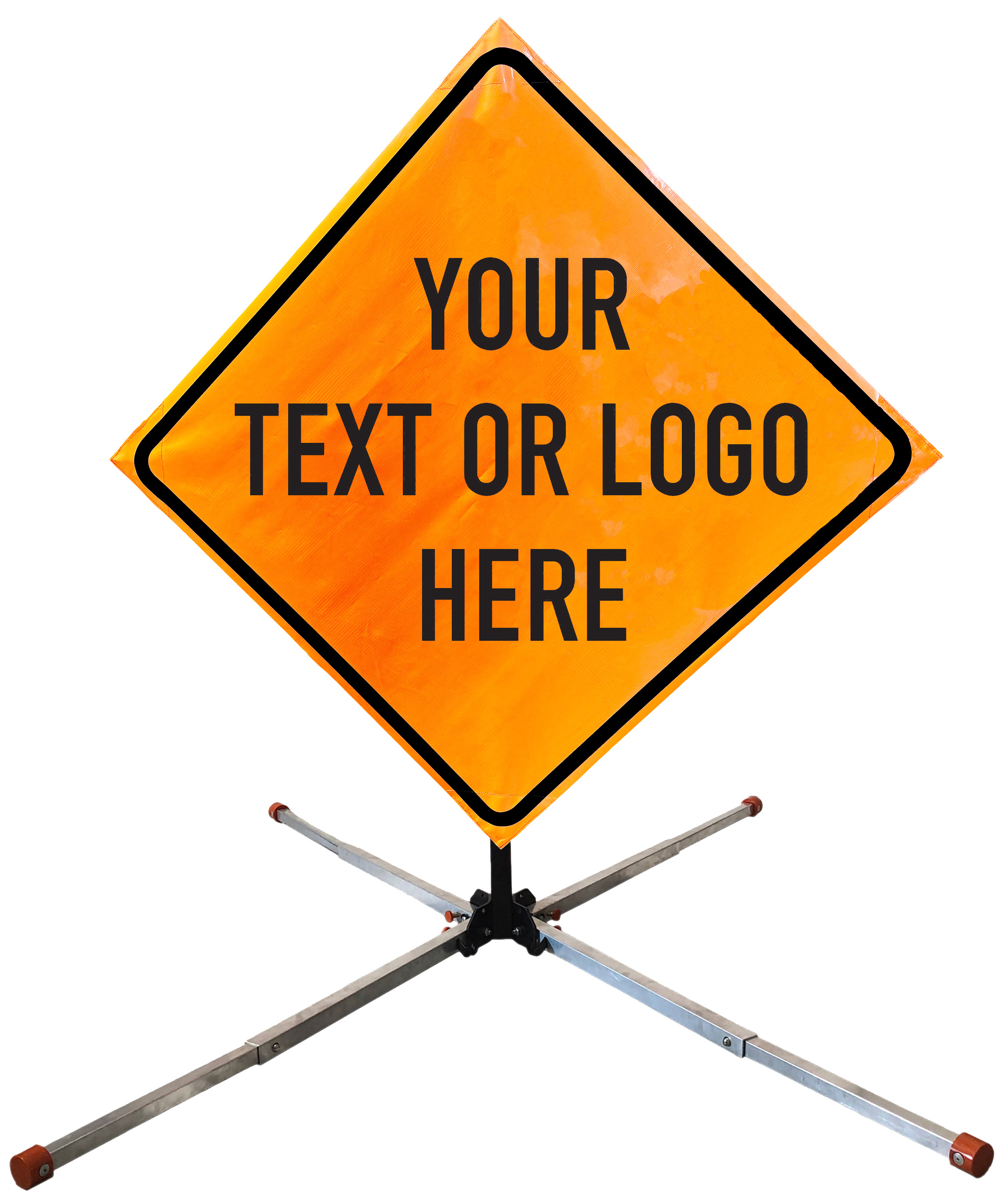

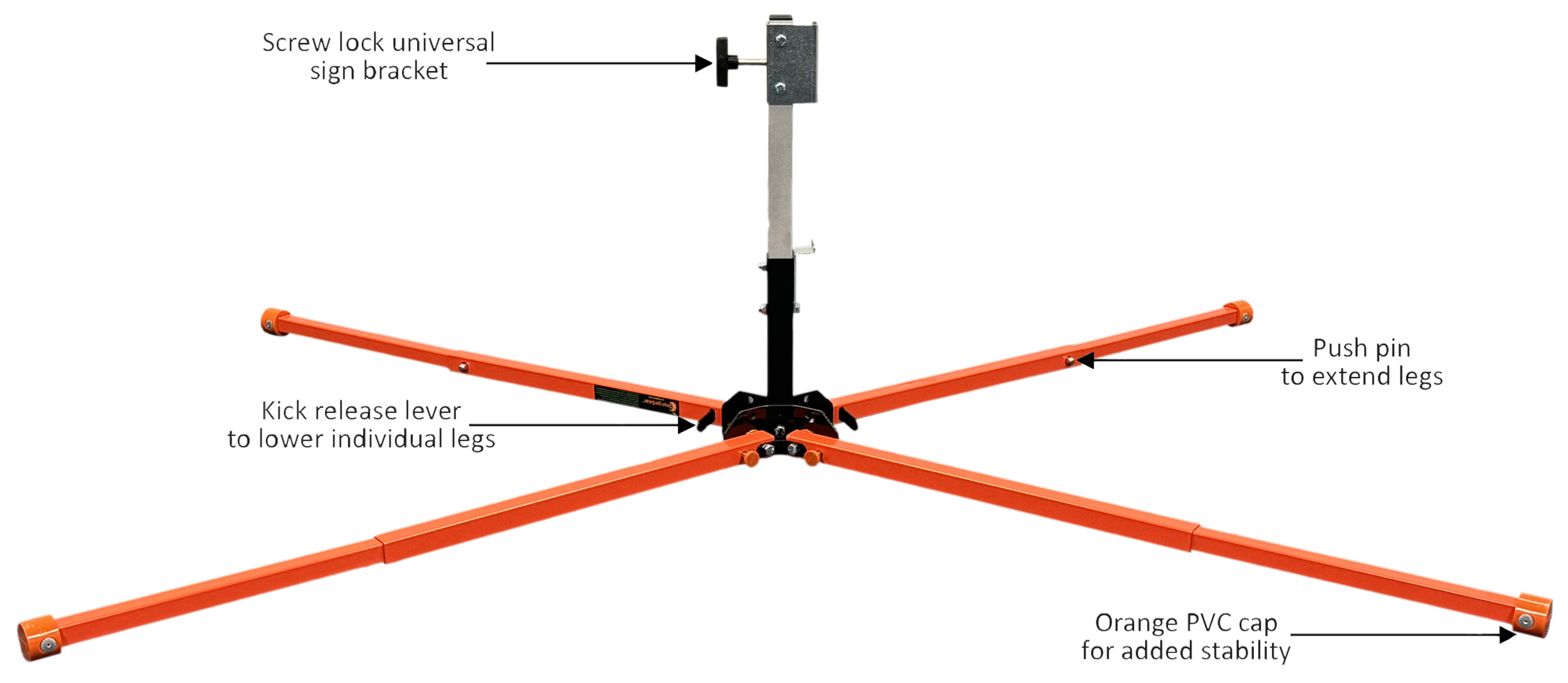

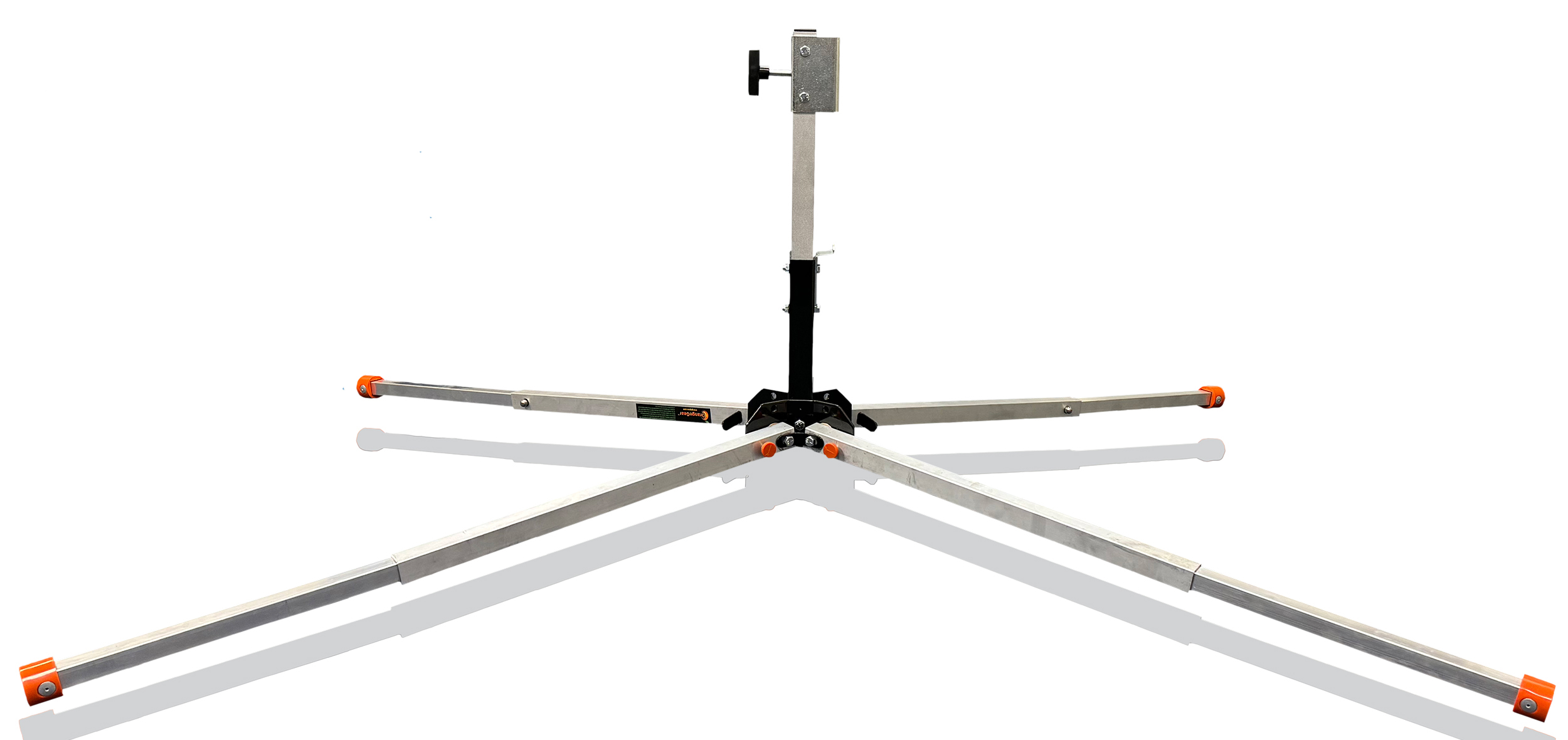

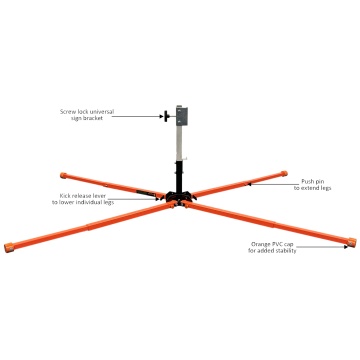

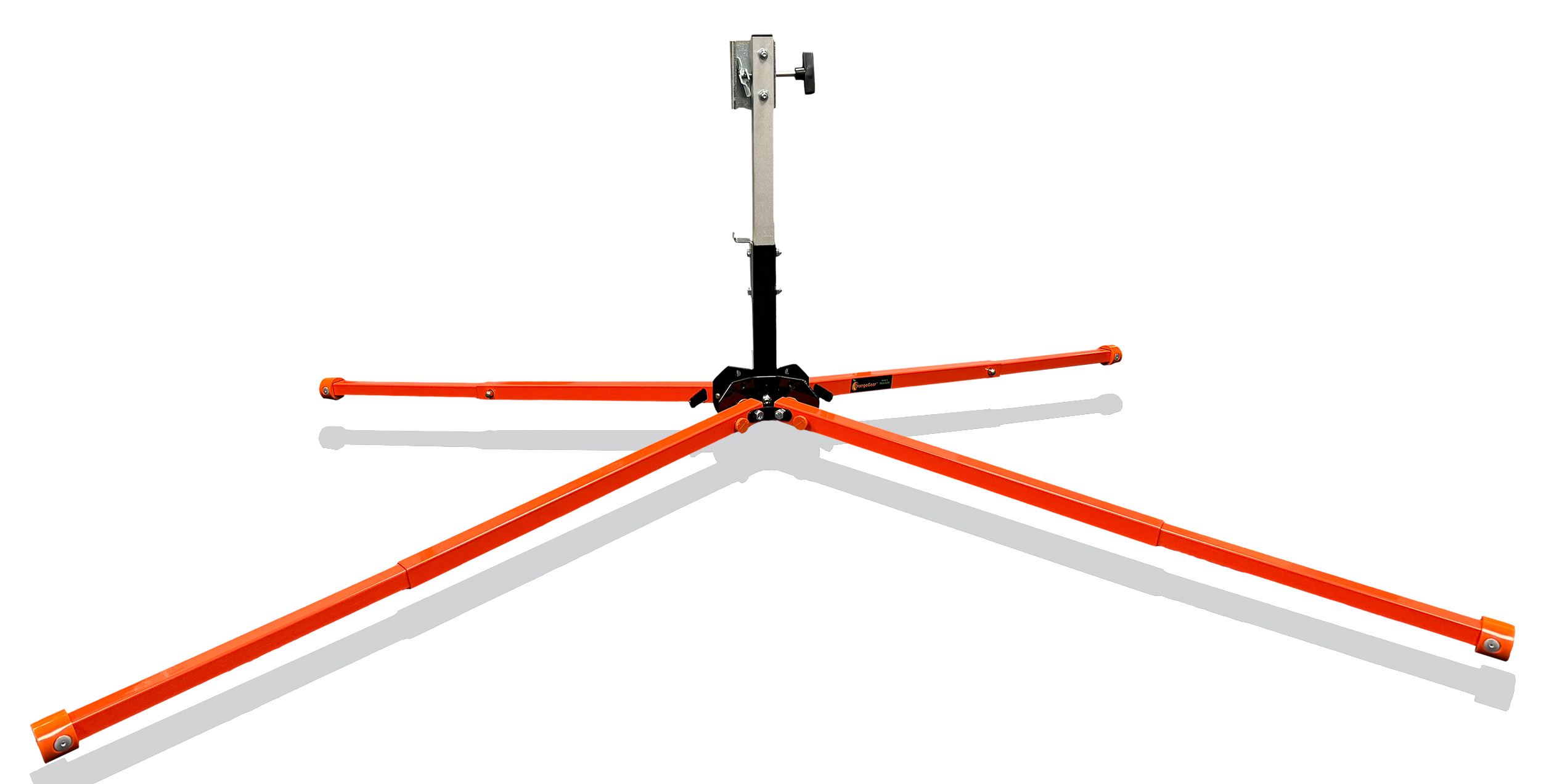

Stand options include a lightweight springless aluminum stand (13 lbs.), a heavier-duty springless steel stand (18 lbs.), and a single-spring steel stand (25 lbs.) designed to flex and sway in gusty conditions rather than tip over. All three stands are four-legged, fold flat to a compact 5" W x 24" H for easy transport, and deploy to 41" W x 26.75" H when fully extended. Each leg extends up to 41" individually and features a kick-release lever that lets you level the stand on uneven terrain. Signs are elevated 12" off the ground on a universal screw-lock bracket that accommodates both sewn and plastic corner pockets. Orange riveted leg caps add an extra layer of visibility on site. All 3 stand models are compatible with 36" and 48" roll-up signs. All stands are MASH approved; all signs are MUTCD compliant.

Features:

  • High-Visibility Material Options

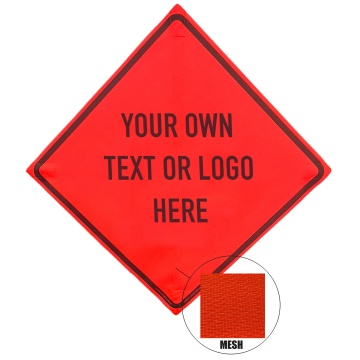

    - 15 oz fluorescent orange woven mesh for wind resistance and durability
    - Non-reflective vinyl for crisp daytime visibility

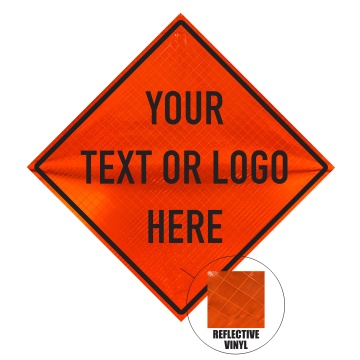

    - 3M™ high-intensity reflective vinyl for enhanced nighttime and low-light visibility
  • MUTCD-Compliant Worker Symbol
    - Bold black worker icon for clear, universal recognition
    - Fluorescent orange background increases visibility
  • Durable & Wind-Resistant Construction
    - Reinforced sewn corner pockets for fiberglass cross ribs
    - Anti-kiting strap prevents lifting and flapping (vinyl options)
    - Mesh design reduces wind load
  • Heavy-Duty Portable Stand Options

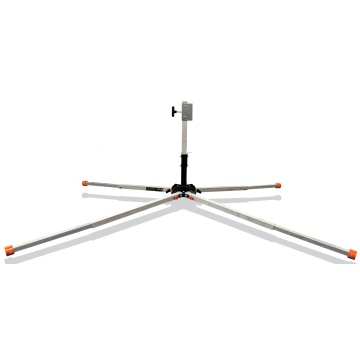

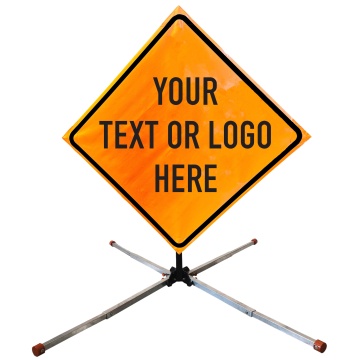

    - Aluminum springless stand (lightweight & portable)

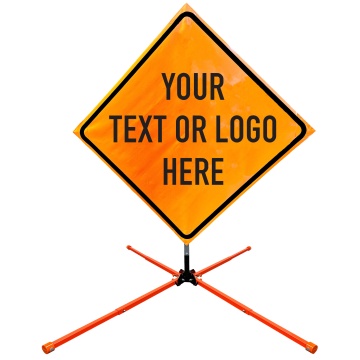

    - Steel springless stand (durable and stable)

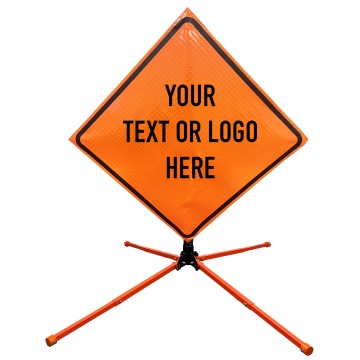

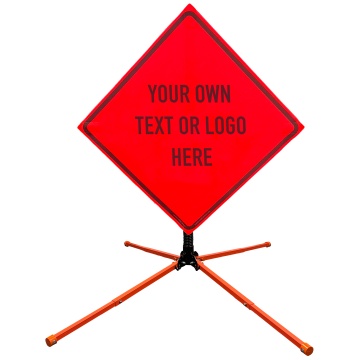

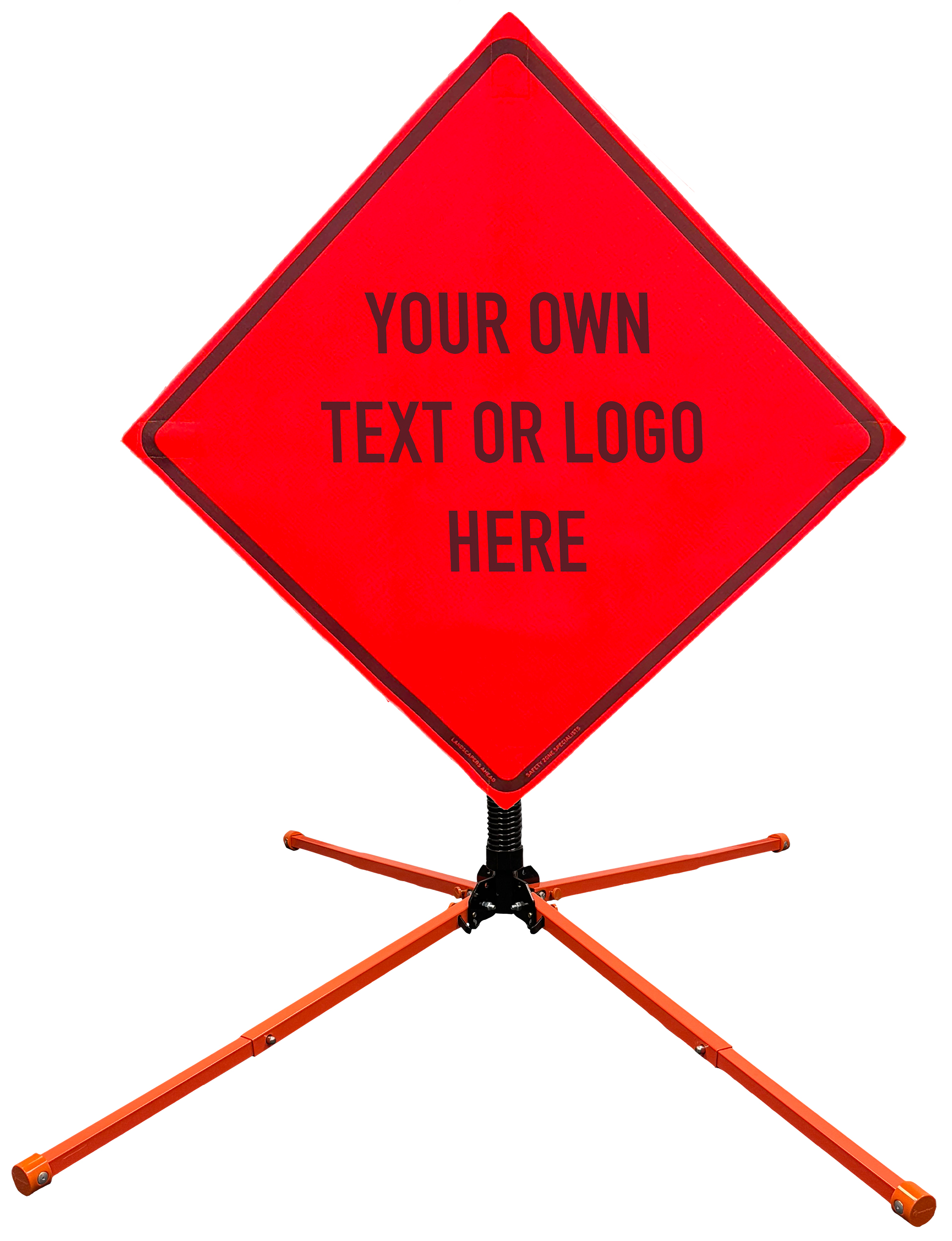

    - Single-spring steel stand allows controlled sway in windy conditions
  • Stable & Adjustable Setup
    - 4-leg base with kick-release levers for uneven terrain
    - Legs extend up to 41” for optimal height
    - Elevates sign 12” above ground for visibility
    - Bright orange riveted leg caps enhance visibility
  • Compact & Transport-Friendly
    - Foldable stand for convenient storage

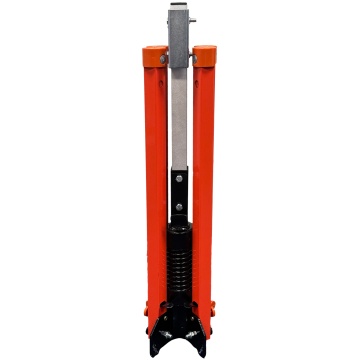

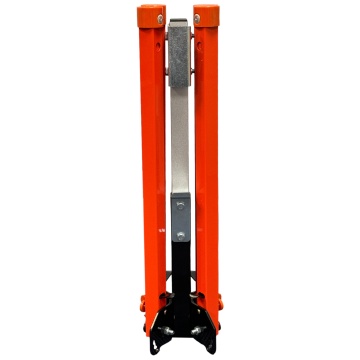

    - Folded size: 5” W x 24” H
  • Weight options
    - 13 lbs (aluminum)
    - 18 lbs (steel)
    - 25 lbs (spring steel)

Why You Should Buy:

  • Improve driver awareness and work zone safety
  • Clearly indicate active work areas with a universally recognized worker symbol
  • Stay compliant with MUTCD and MASH standards
  • Quick deployment and portable design for multiple job sites
  • Durable, lightweight, and reliable for construction crews, contractors, and municipal teams

Specifications:

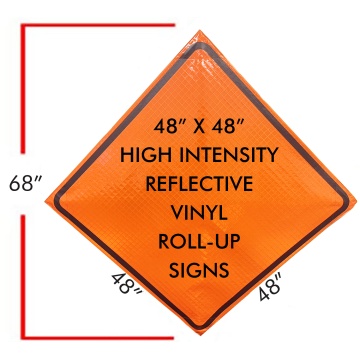

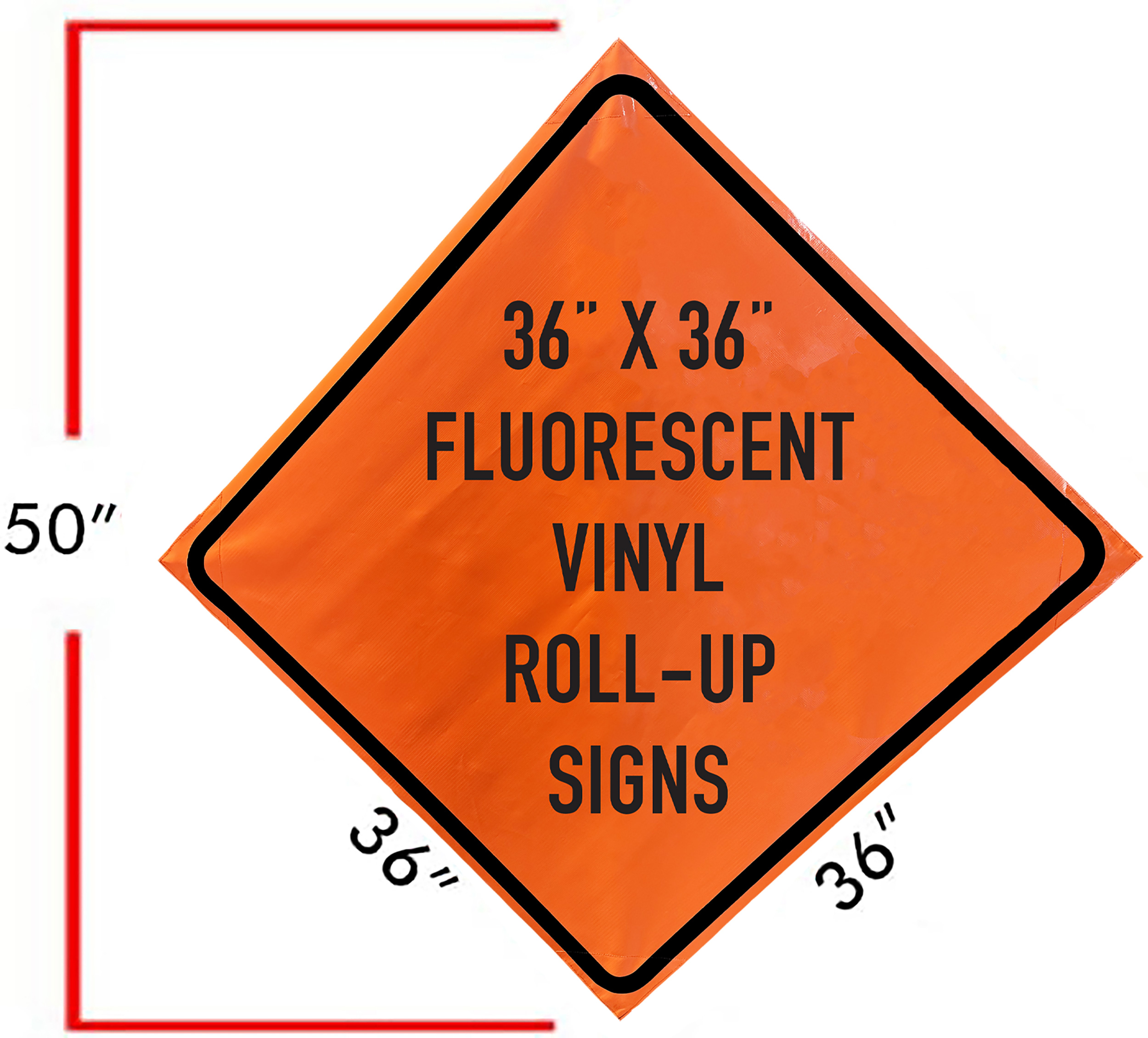

  • Sign Sizes: 36” or 48”
  • Materials: Mesh, Non-Reflective Vinyl, Reflective 3M™ Vinyl
  • Stand Types: Aluminum Springless, Steel Springless, Steel Single-Spring
  • Extended Dimensions: 41” W x 26.75” H
  • Folded Dimensions: 5” W x 24” H
  • Weights: 13 lbs / 18 lbs / 25 lbs
  • Compliance: MUTCD Compliant Sign, MASH Approved Stand

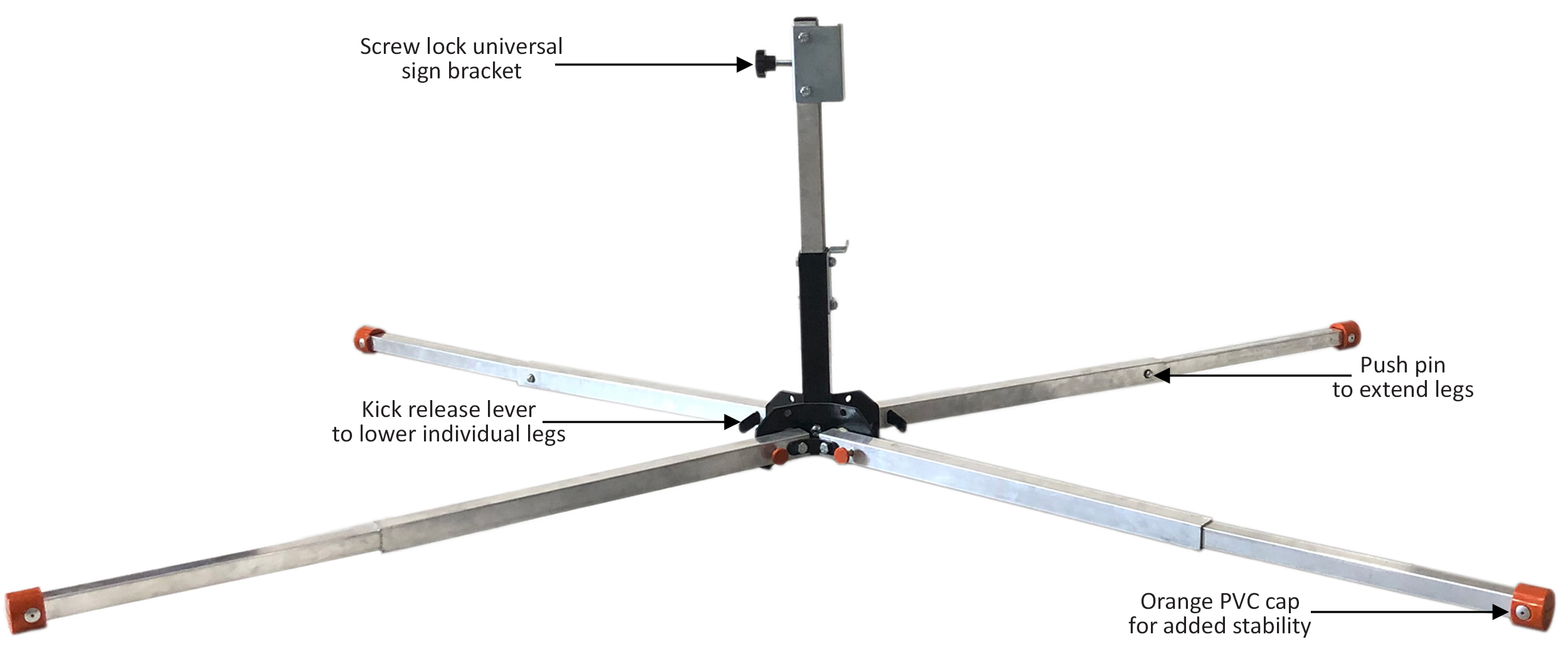

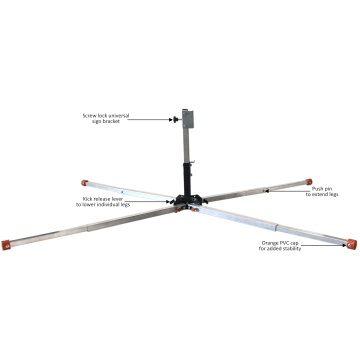

Aluminum & Steel Springless Stand Features:sign stand features 2

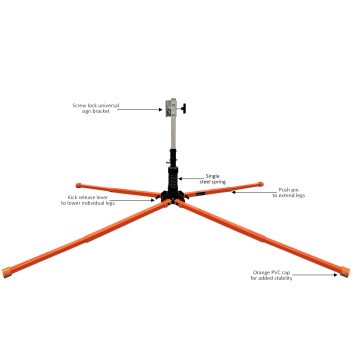

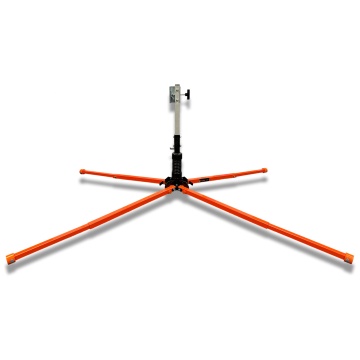

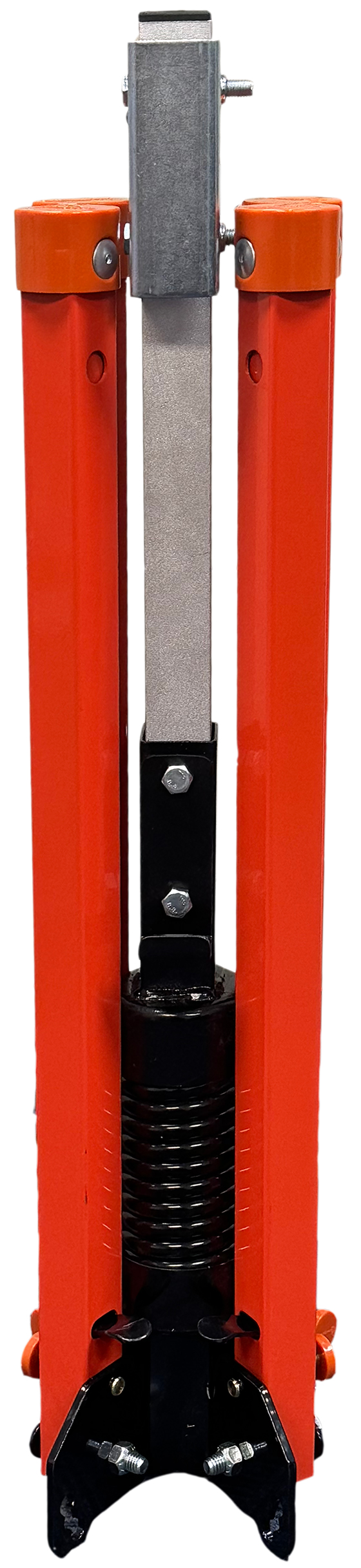

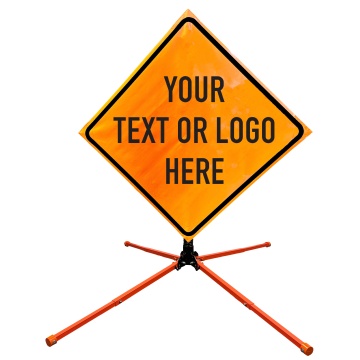

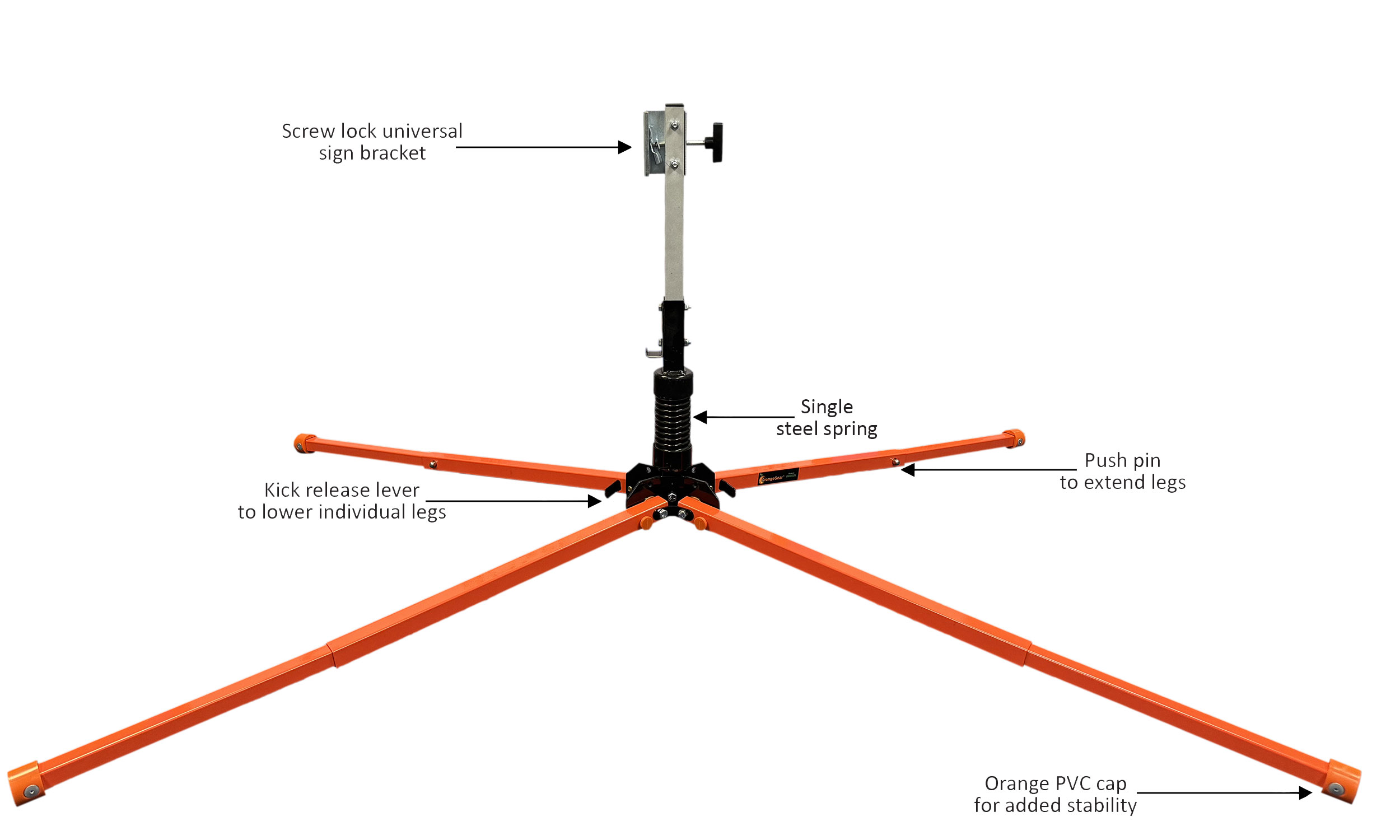

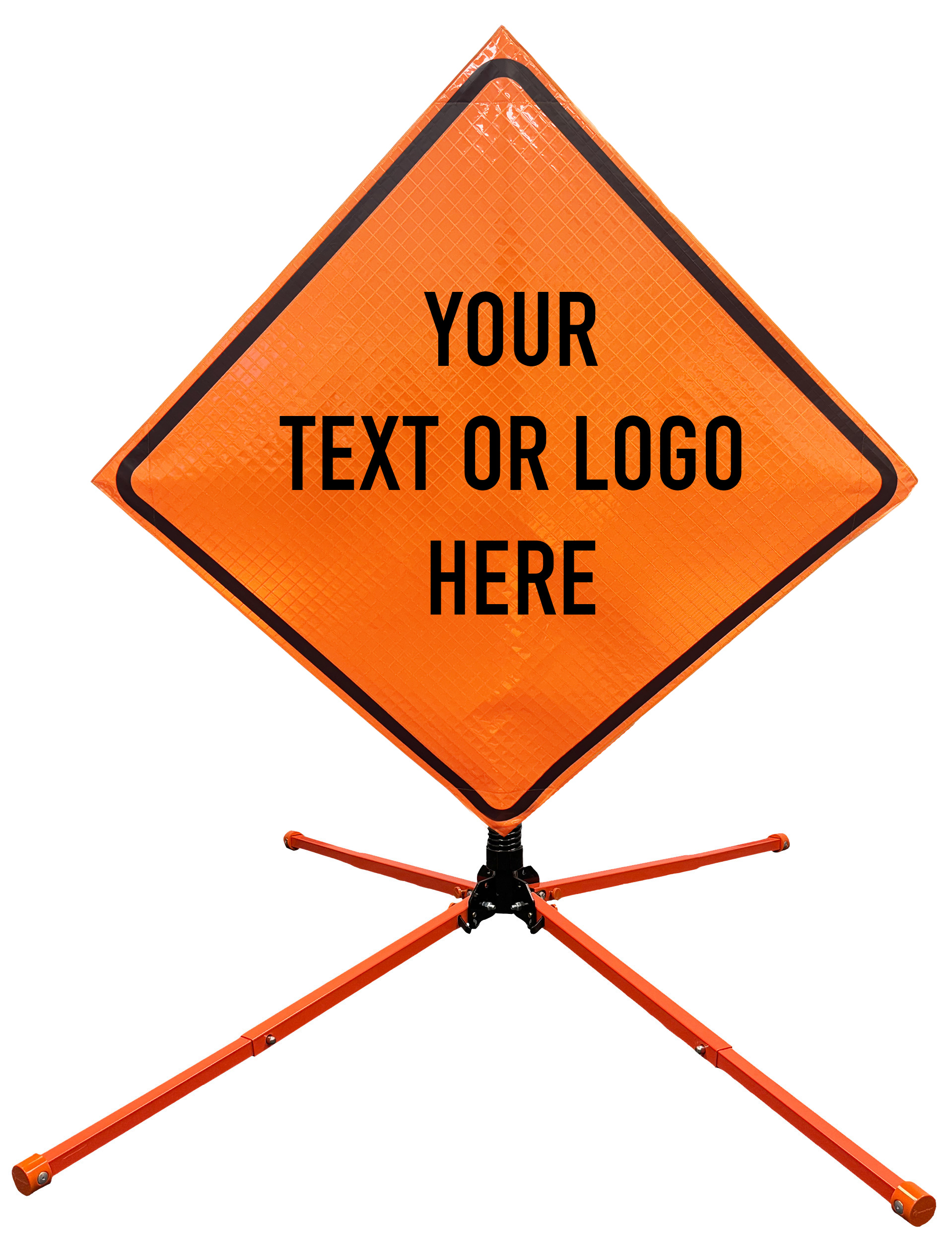

Steel Single Spring Stand Features:steel spring stand features

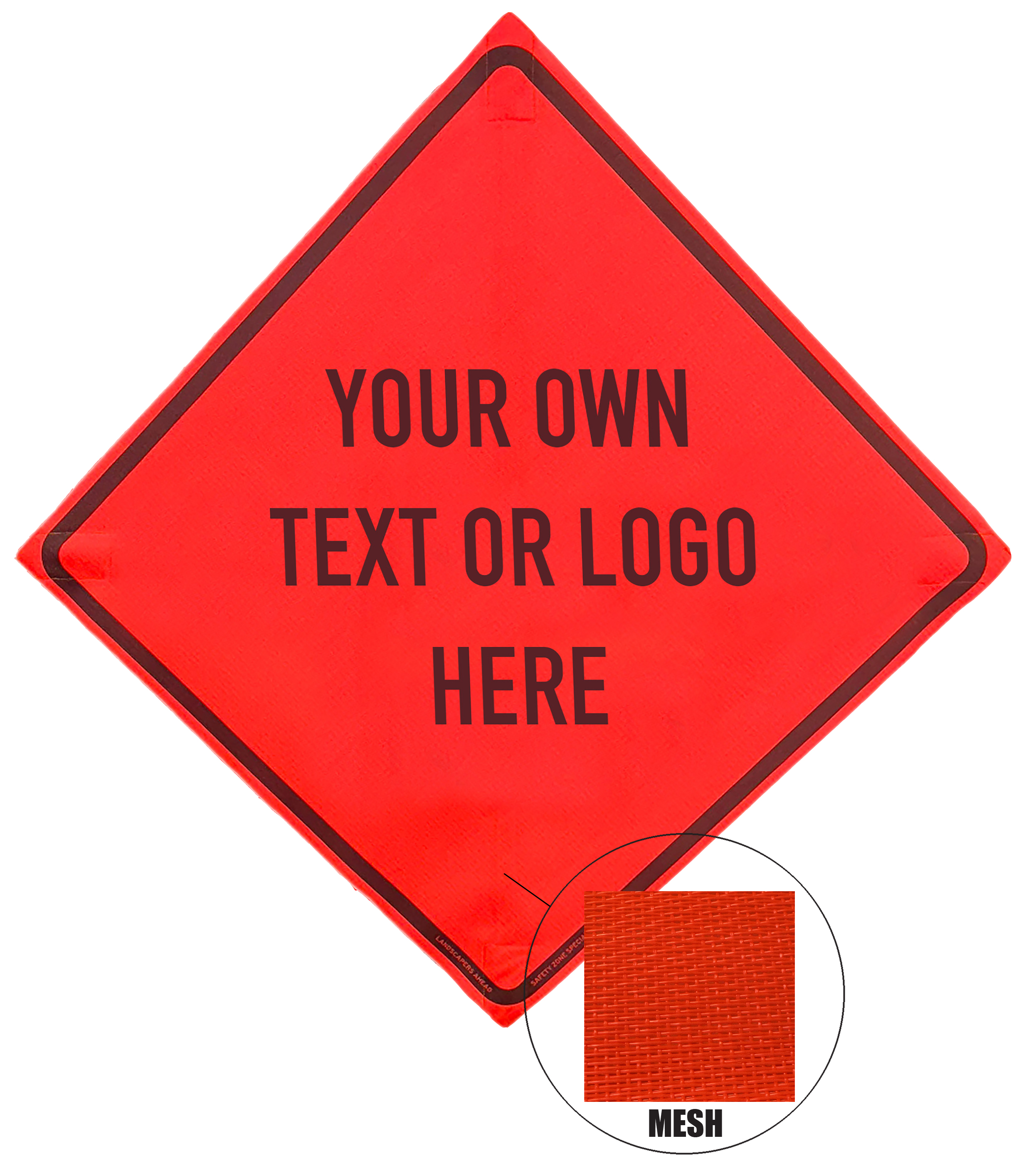

Mesh Sign Features:
mesh sign features2

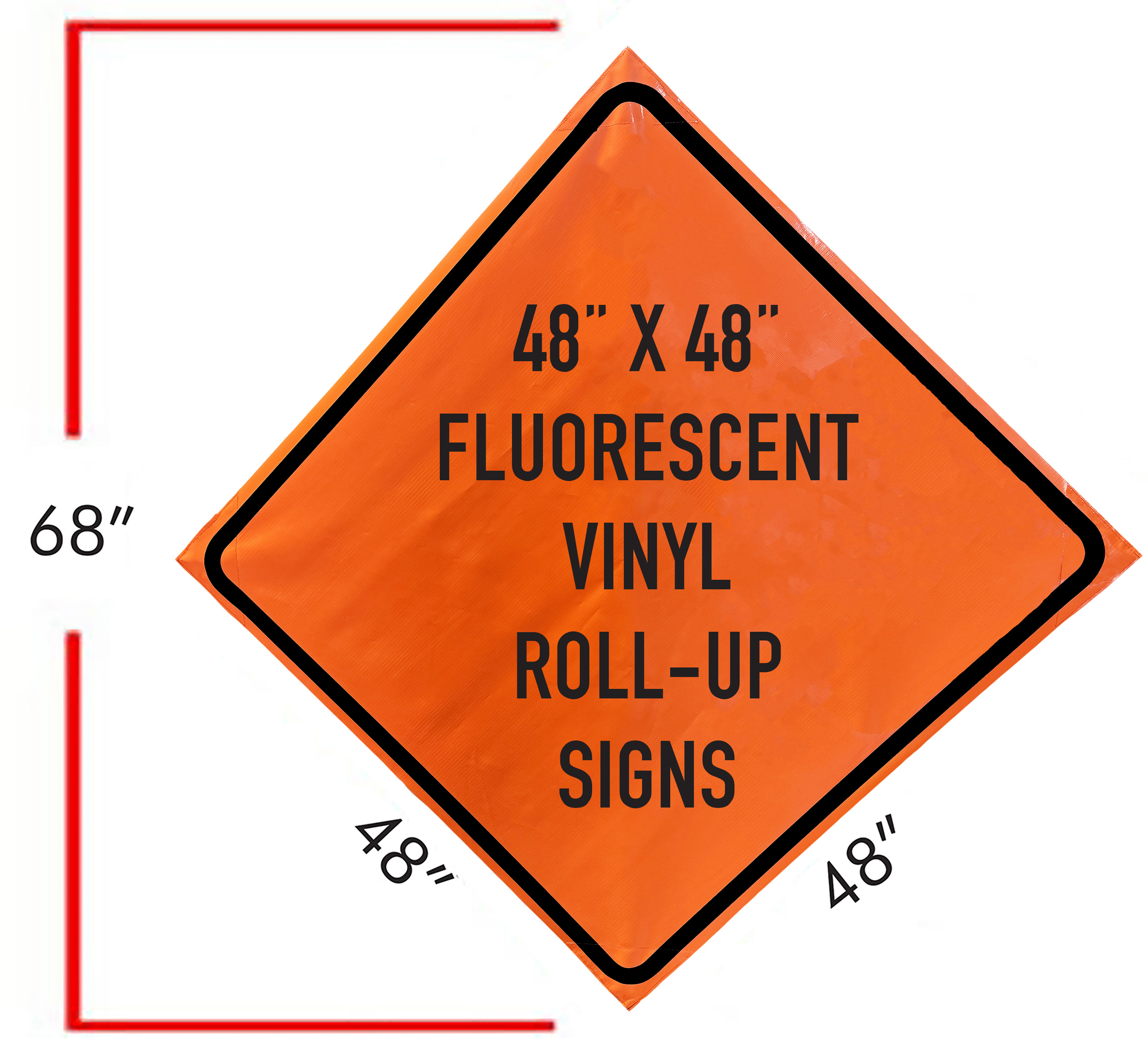

Non-Reflective Vinyl  Sign Features:
mesh sign features2

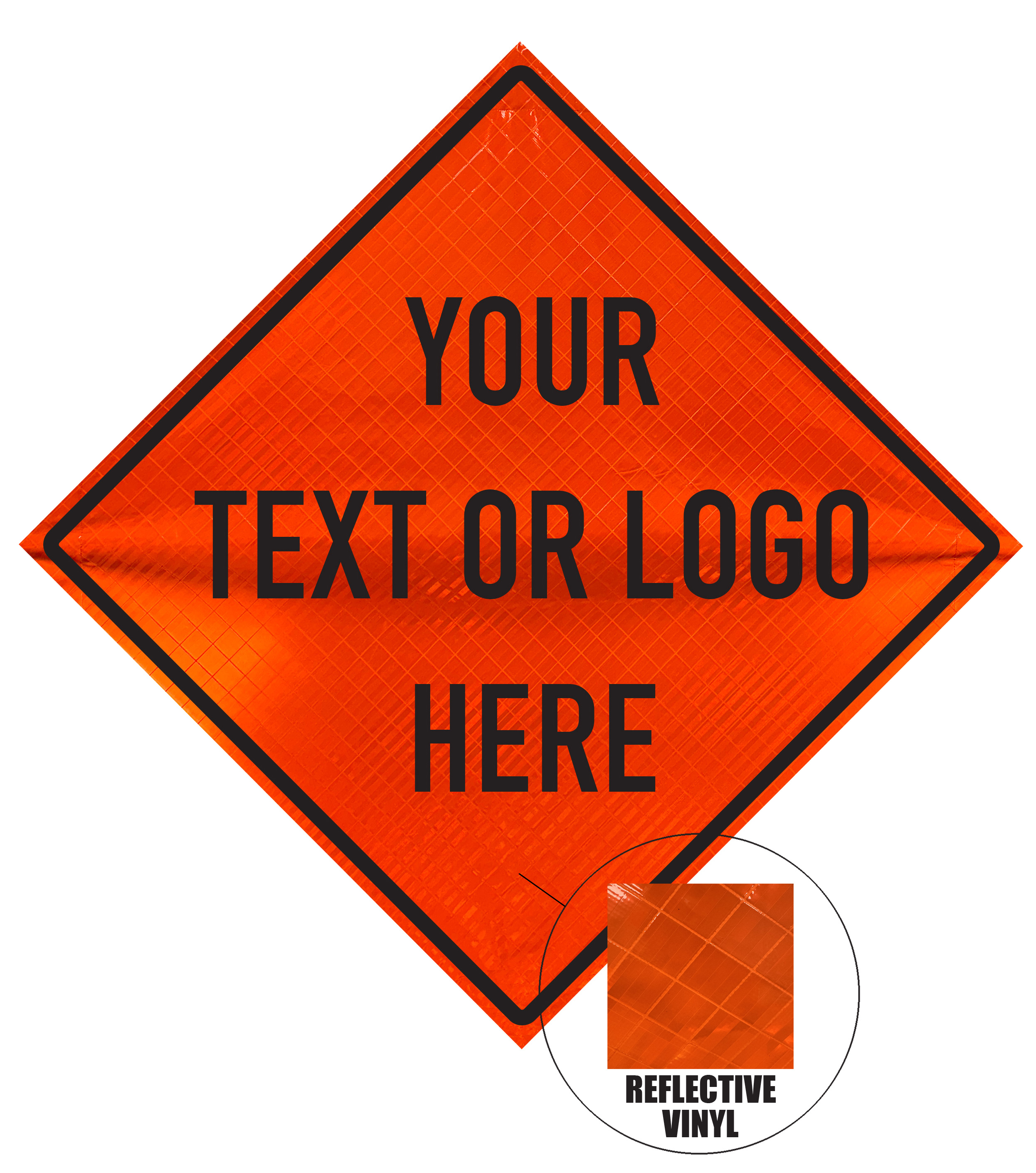

Reflective Vinyl  Sign Features:mesh sign features 3

Sign Usage:when to use signs

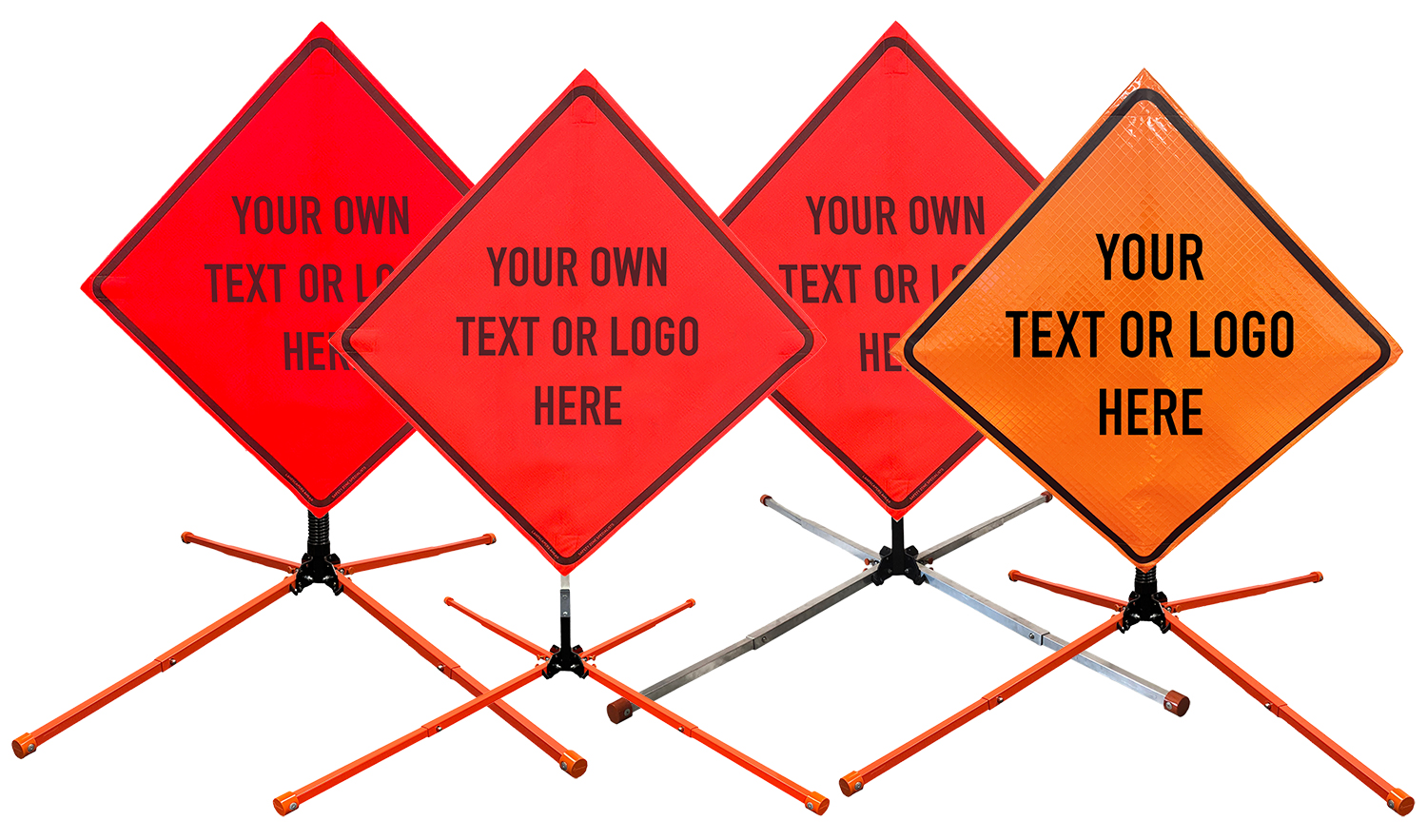

Sign & Stand Kit Comparison:

sign stand kit comparison2

SZS Featured Products

Custom Roll Up Sign & Stand Kit FAQ

+ - Q1: What's included in the OrangeGear® Custom Roll-Up Sign & Stand Kit? Click to collapse
Each kit includes one custom-printed roll-up sign (in your choice of size and material), one four-legged sign stand (in your choice of springless aluminum, springless steel, or single-spring steel), and a pair of orange fiberglass cross ribs. Everything ships as a complete, ready-to-deploy work zone package.

+ - Q2: What sign sizes are available? Click to collapse

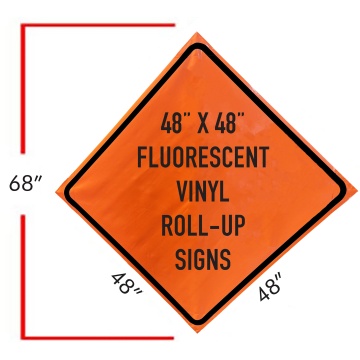

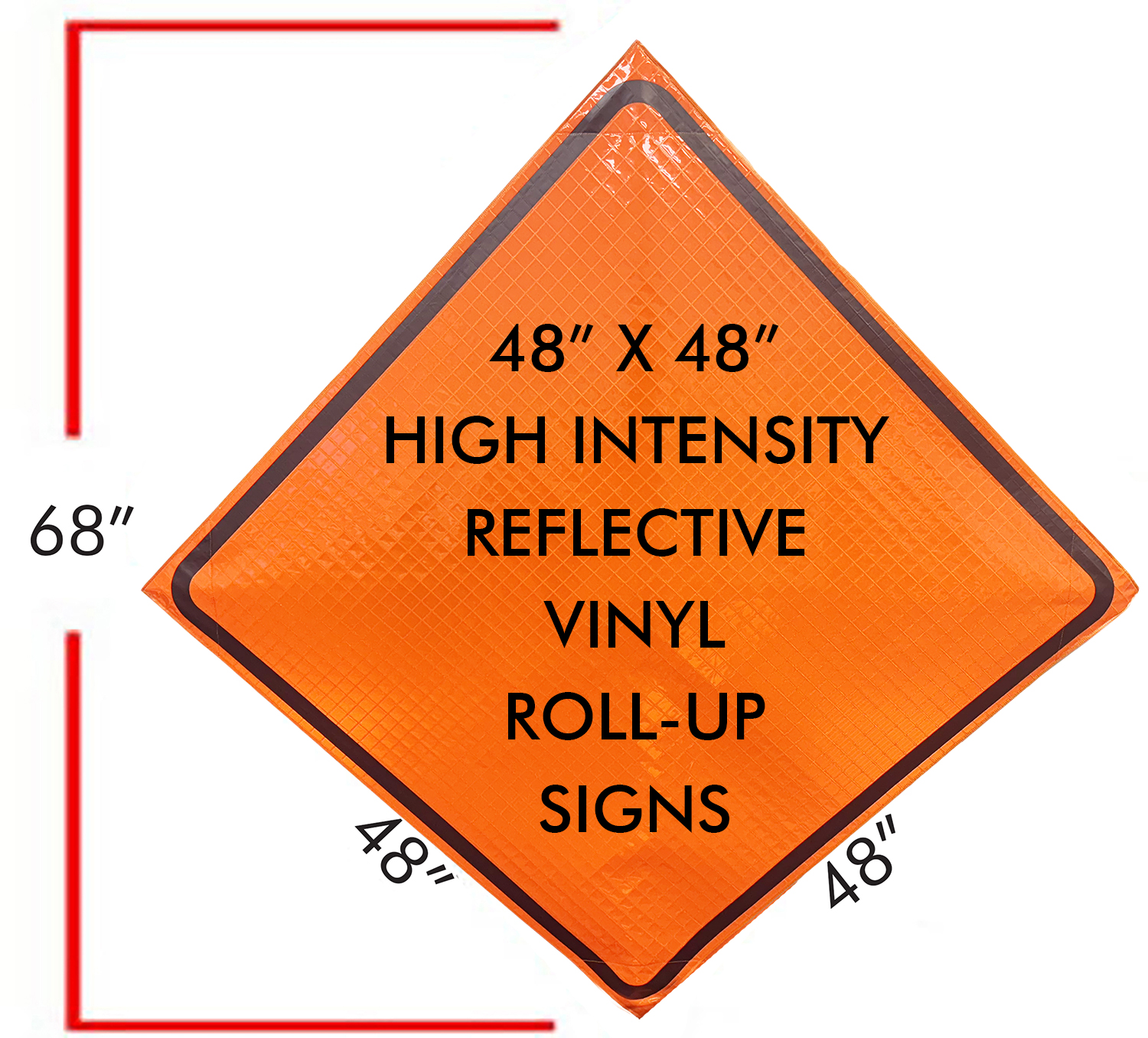

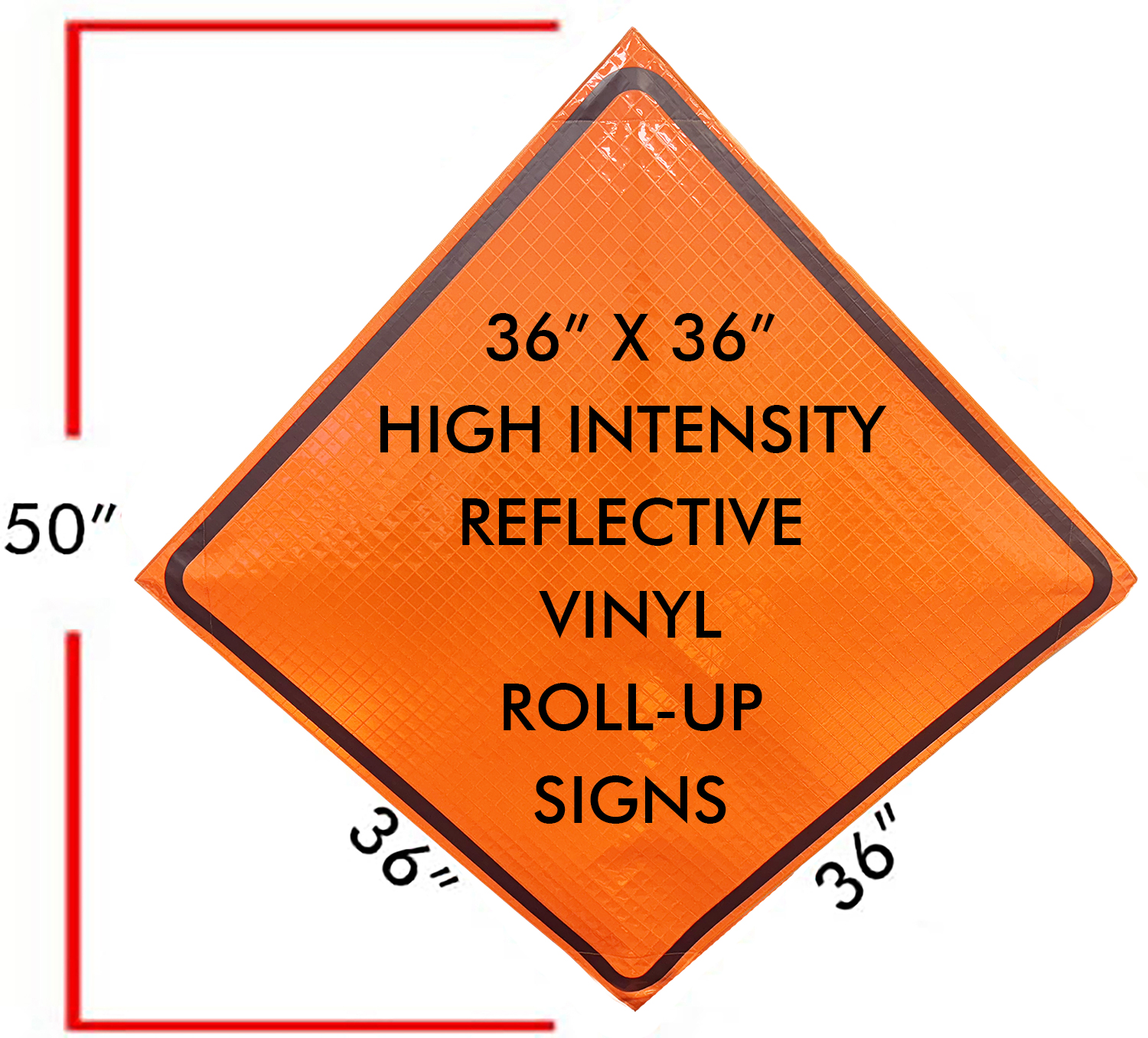

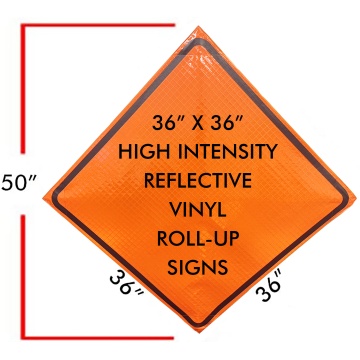

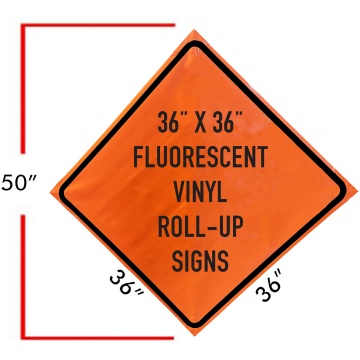

Signs are available in 36" x 36" and 48" x 48". Both sizes are available in mesh, non-reflective vinyl, and 3M High Intensity reflective vinyl options.

+ - Q3: What sign materials can I choose from, and what's the difference? Click to collapse
: There are three options. The mesh sign is made from 15 oz fluorescent safety orange woven mesh - ideal for high-wind environments because air passes through the sign rather than pushing against it. The non-reflective vinyl is a solid fluorescent orange vinyl suited for daytime use. The reflective vinyl is made from ASTM-certified 3M™ High Intensity material that reflects headlights and other light sources, making it visible day and night. Both vinyl signs include an anti-kiting strap on the back that clips to the cross ribs to keep the sign from lifting or flapping in the wind.

+ - Q4: How do I submit my custom artwork or text? Click to collapse
After adding your kit to the cart, visit the Artwork Upload page on the Safety Zone Specialists website to upload your artwork and/or text. Note your Artwork ID number and enter it in the Additional Information field at checkout. All custom screen printing is done in black only.

+ - Q5: What stand options are available, and how do I choose the right one? Click to collapse

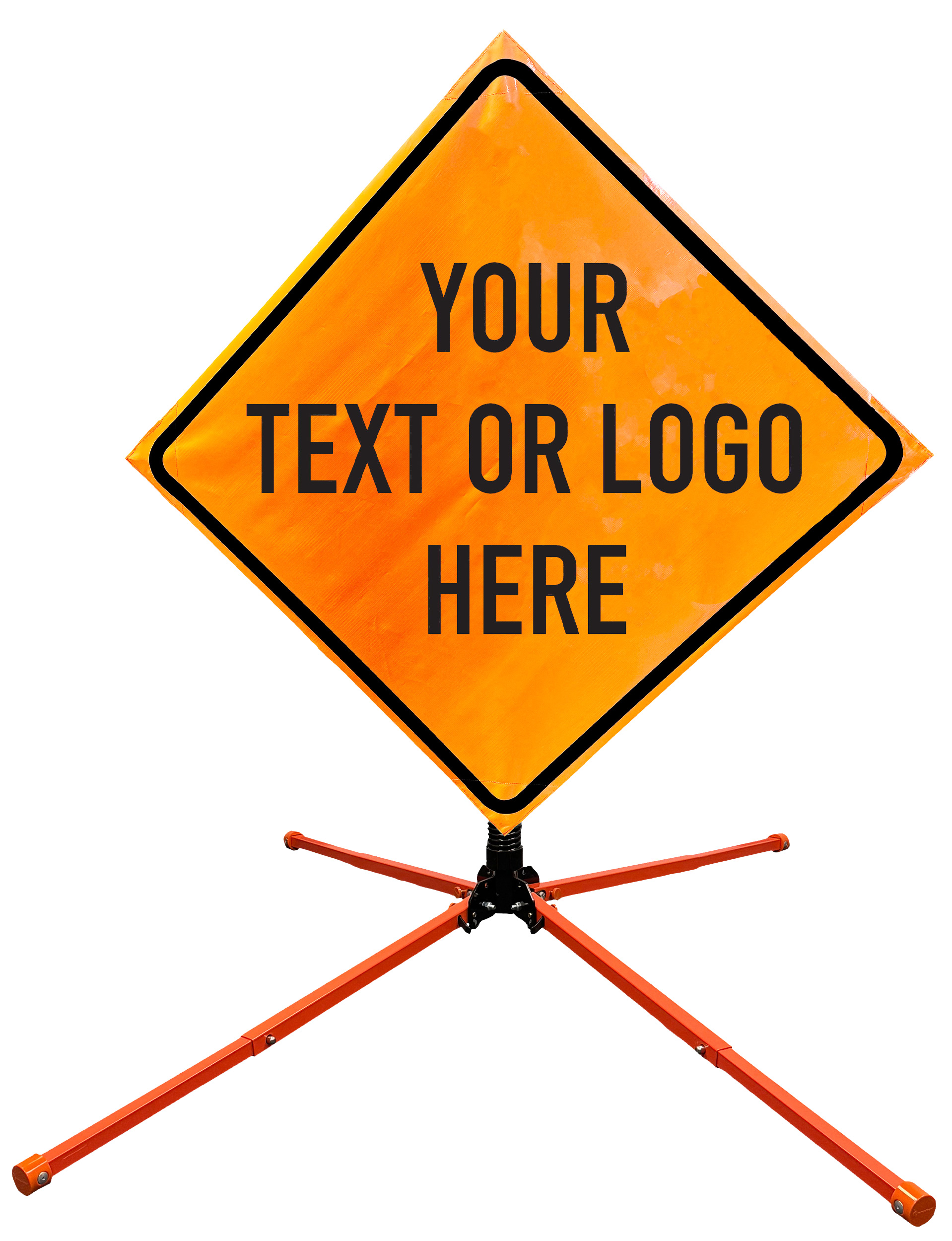

There are three stand configurations. The springless aluminum stand is the lightest at 13 lbs. and works well for frequent moves between locations. The springless steel stand at 18 lbs. offers additional durability for longer-term deployments. The single-spring steel stand at 25 lbs. features a built-in steel spring that lets the sign sway in windy conditions rather than risking a tip-over — the best choice for exposed or high-traffic environments. All 3 stand models are compatible with 36" and 48" mesh and vinyl signs.

+ - Q6:Are these sign stands approved for work zone use? Click to collapse
Yes. All three OrangeGear® stand models are MASH (Manual for Assessing Safety Hardware) approved, and all signs in this kit are MUTCD (Manual on Uniform Traffic Control Devices) compliant — meeting the requirements for use in public roadway and work zone applications.

+ - Q7: How does the stand adjust for uneven ground? Click to collapse
Each of the four legs features an individual kick-release lever that allows you to raise or lower that leg independently, letting you level the stand on uneven or sloped surfaces without shimming or guessing. Each leg extends up to 41".

+ - Q8: What are the stand's dimensions when deployed and when folded for transport? Click to collapse

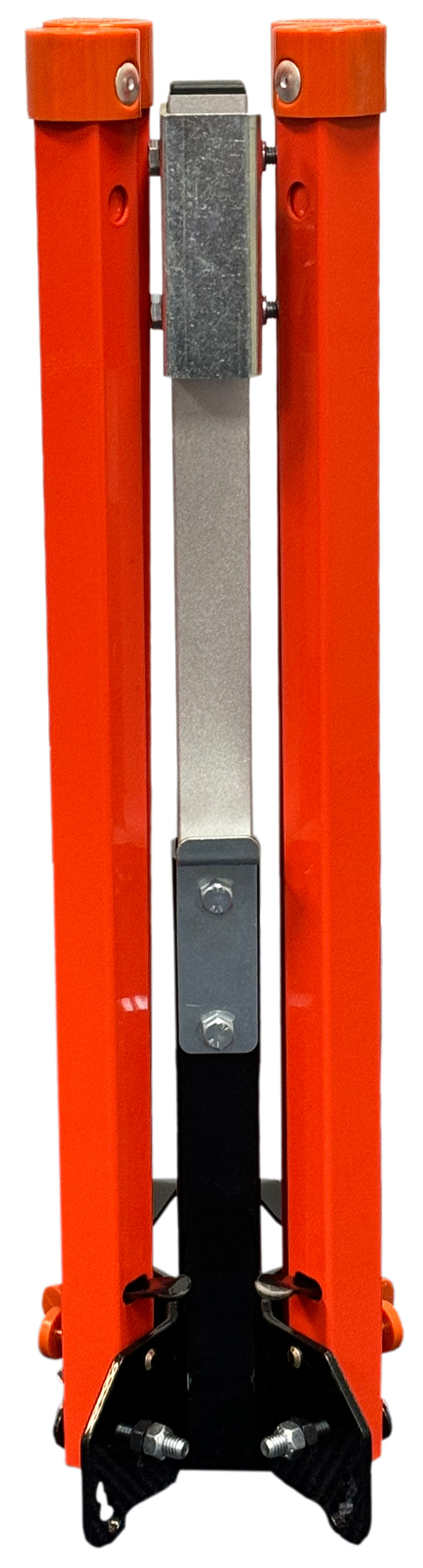

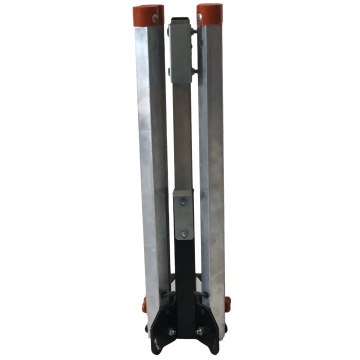

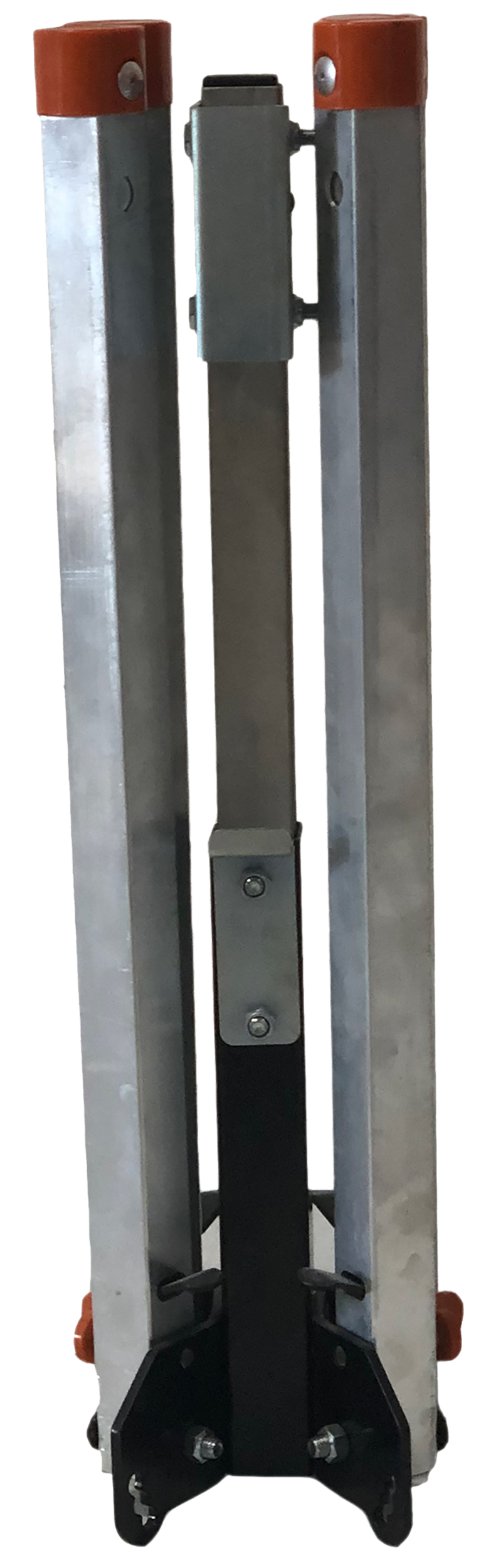

When fully extended, the stand measures 41" W x 26.75" H and elevates the sign 12" off the ground. When folded, it collapses to a compact 5" W x 24" H, making it easy to fit in a truck bed, van, or equipment compartment alongside other gear.

+ - Q9: Can these signs be used at night? Click to collapse

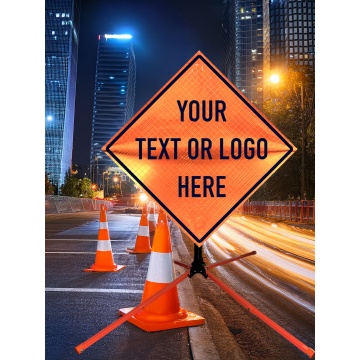

The 3M High Intensity reflective vinyl sign option is engineered for both daytime and nighttime use, reflecting vehicle headlights and worksite lighting to maintain visibility around the clock. The mesh and non-reflective vinyl signs are intended for daytime applications only.

+ - Q10: What is the difference between the springless and single-spring steel stands? Click to collapse

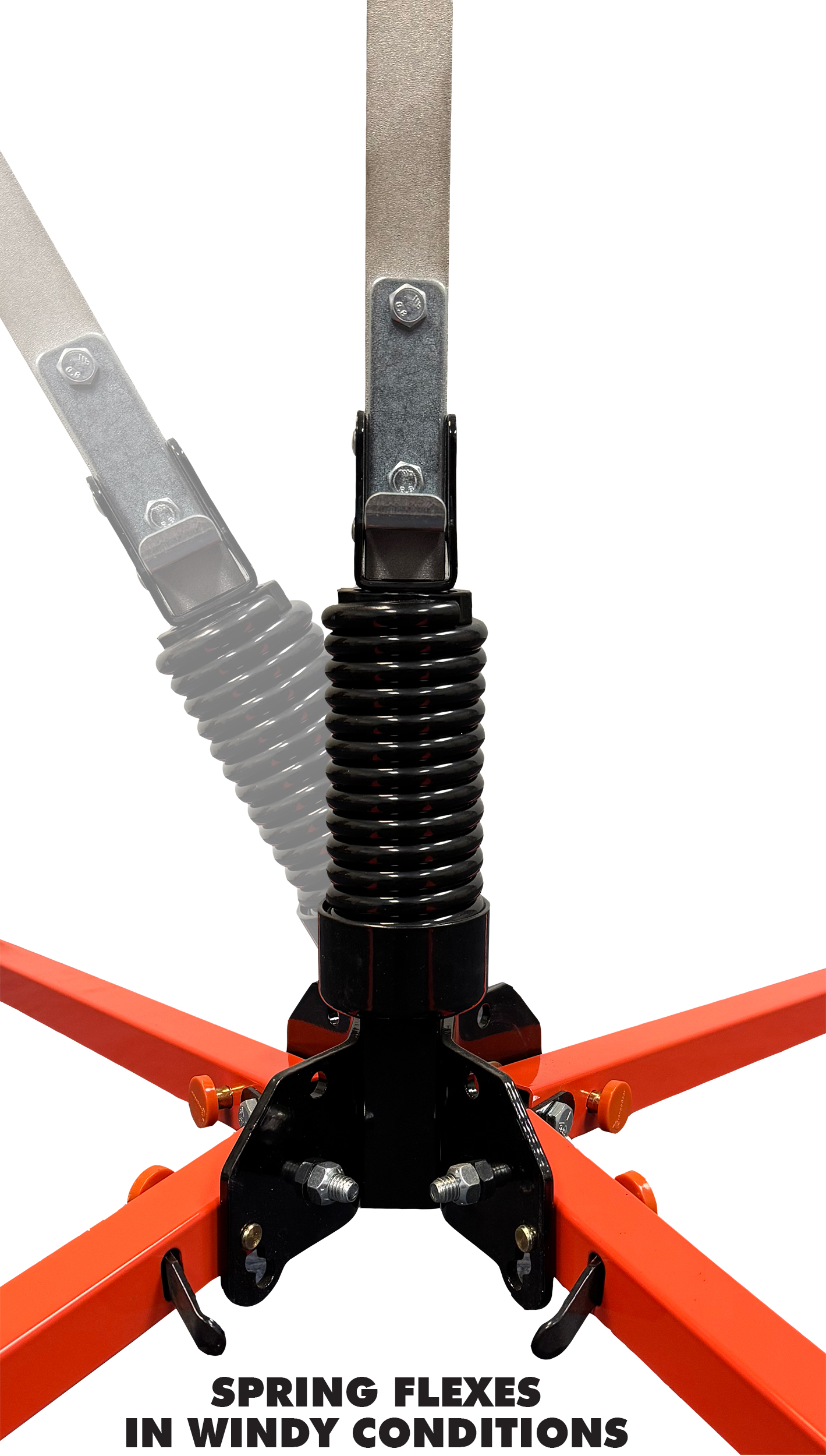

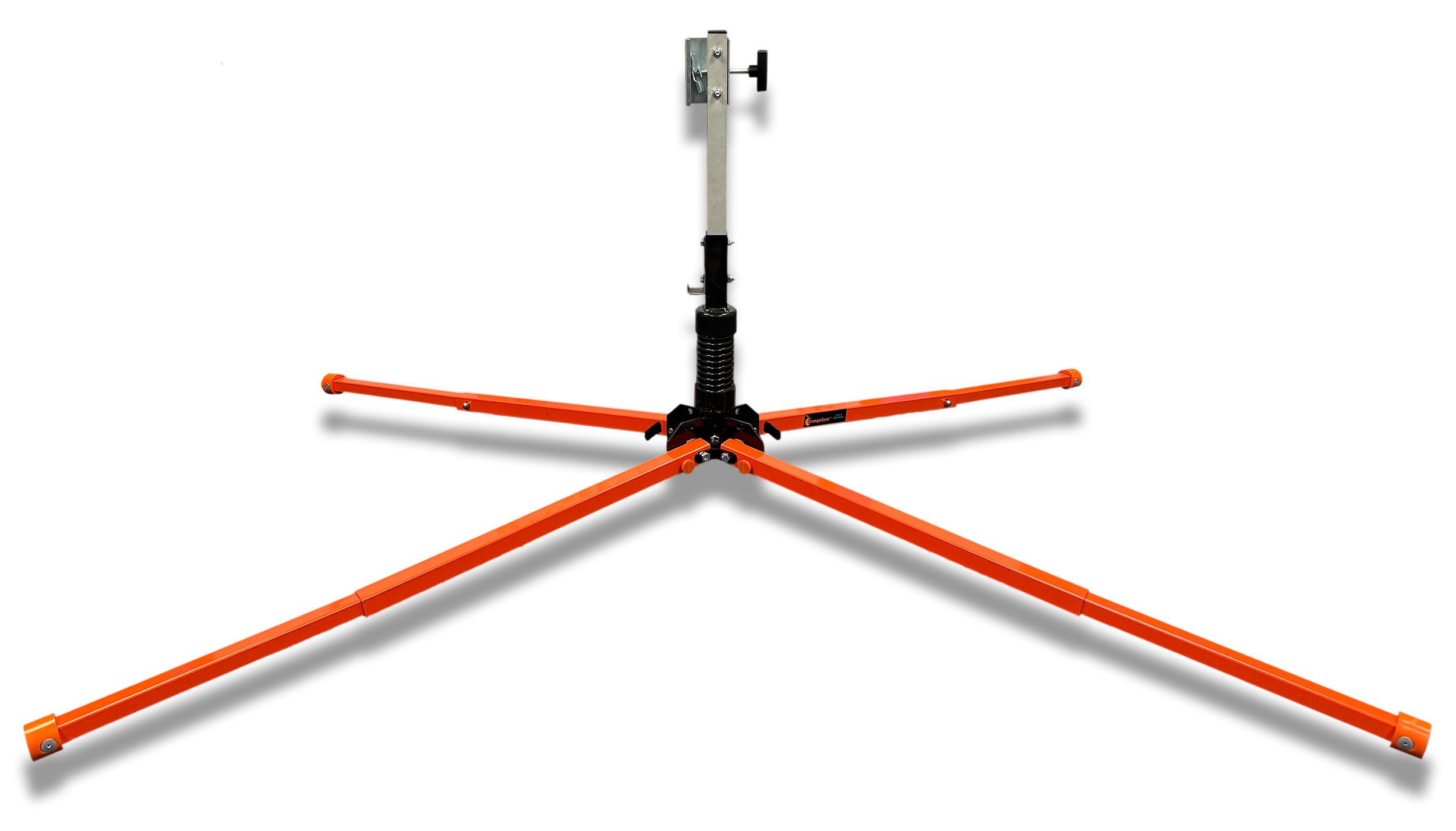

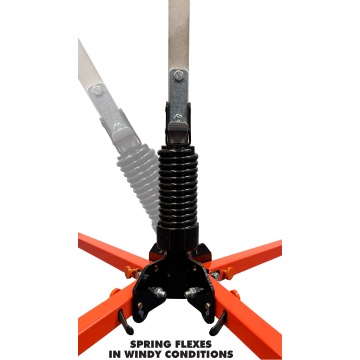

Both are made of steel and accommodate the same sign sizes, but the single-spring stand contains a steel spring in the mast that allows the sign to flex and sway when hit by wind gusts or vehicle wake. This movement dissipates force and helps prevent the stand from tipping. The springless stand is rigid — lighter in situations with low wind exposure but less forgiving in gusty or high-traffic corridors.

+ - Q11: Is free shipping available on this product? Click to collapse
Safety Zone Specialists offers free shipping promotions — check the banner on the site for current eligibility. For specific shipping rates and delivery timelines, contact SZS at (863) 816-3402 or through the Contact page.
