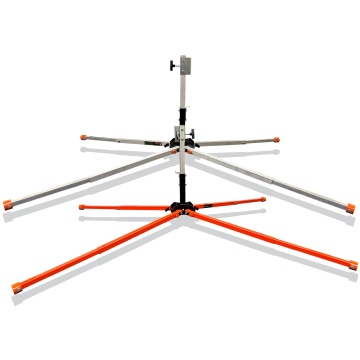

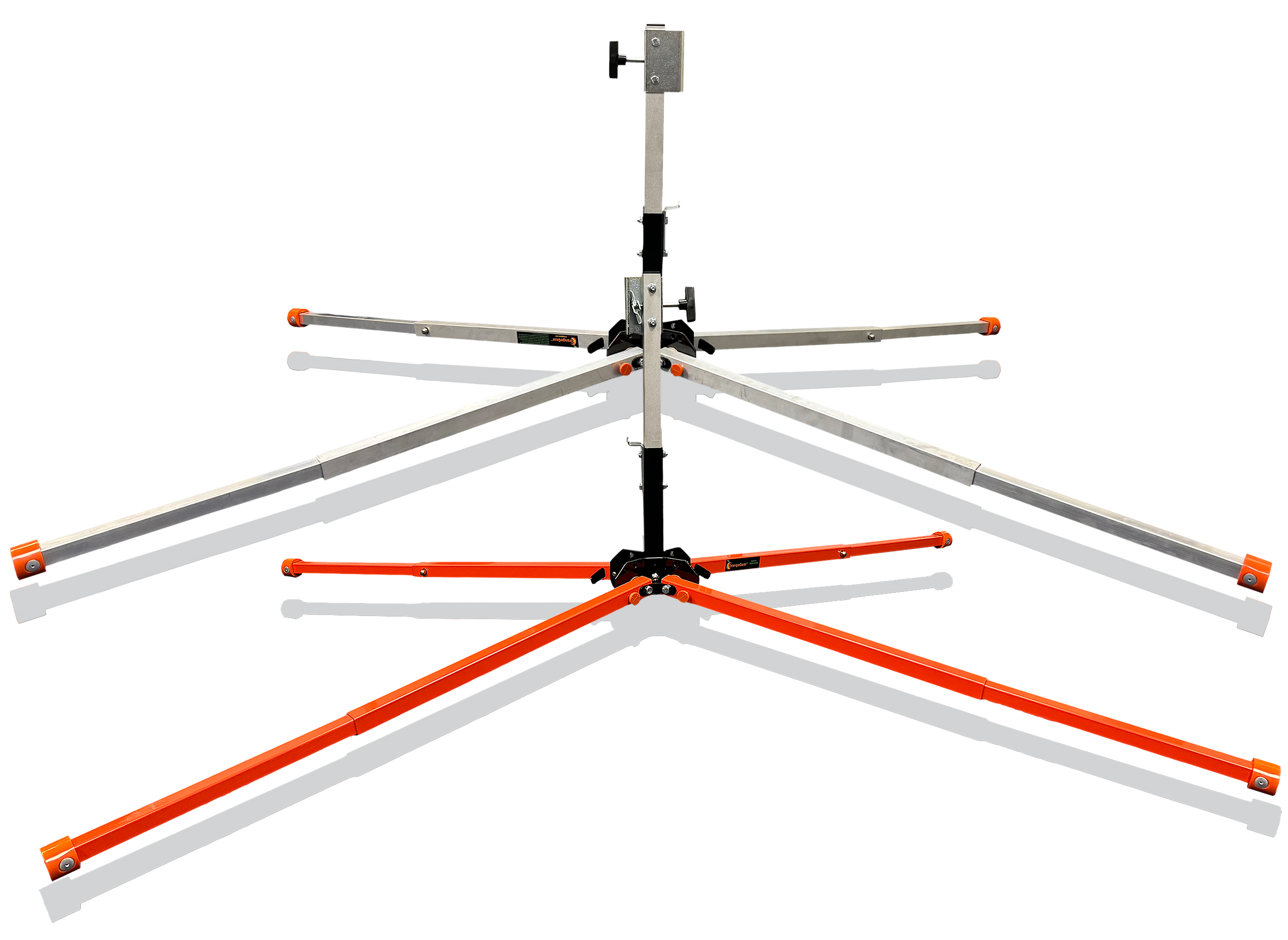

The OrangeGear® Aluminum Compact Stand for Roll-Up Signs is MASH compliant, ready for work right out of the box. This stand comes with a universal screw-lock bracket that will hold signs with sewn corner pockets or plastic corner pockets. It can accommodate 36” and 48” roll-up signs and displays signs 12” off the ground. The stand legs of this stand are made of aluminum with foot operated leg releases to deploy the legs. Each leg extends to help increase stability, and has two height adjustments to help level out the stand on uneven terrain. The stand weighs 13 lbs.

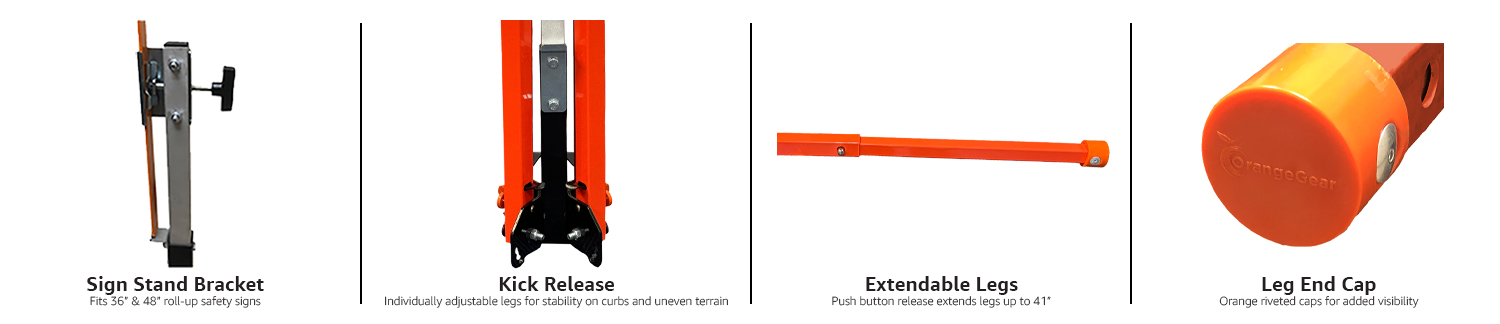

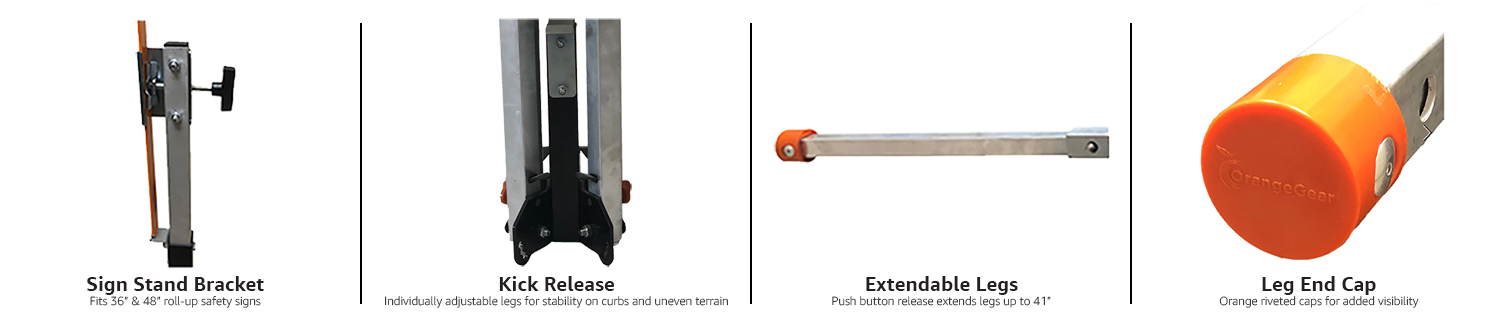

Features:
- Lightweight design - 13 lbs.
- Compact for easy storage
- Occupies only 1 cubic foot of storage space when folded
- Kick release lever to lower each individual leg
- Riveted PVC caps on each leg for added stability and visibility
- Spin-handle accommodates 36" and 48" roll-up safety signs
- Legs extend up to 41"
- MASH compliant
Specifications:
- Weight: 13 lbs.
- Extended dimensions: 41" W x 26.75" H
- Folded dimensions: 5" W x 24" H
- Signs: Roll-up signs
Part Number | Leg Construction | Bracket Style | Style | Open Dimensions | Closed Dimensions | Weight | Sign |
OGAL412-A | Aluminum | Universal (Fits all standard fiberglass ribs. Clamp grips rib firmly and quickly.) |
Springless | 41" x 26.75" | 5" x 24" | 13 lbs. | Roll-up |
OGAL412-S | Steel | Universal (Fits all standard fiberglass ribs. Clamp grips rib firmly and quickly.) |
Springless | 41" x 26.75" | 5" x 24" | 18 lbs. | Roll-up |
