OrangeGear® traffic cones feature grip top technology for reduced slippage while handling and a quick release stacking design. These fade resistant cones perform great in all weather conditions making them the perfect fit for all climates. The traffic cones feature an interlocking base for additional support and reduced base cracking during the cone being runover incidents. The base of the cone has eight legs that improve friction to prevent skidding during placement. The OrangeGear® traffic cones deliver high visibilty, high quality and high performance for every situation. Your safety demands it.
Features:
- Injection-molded for supreme durability
- New grip technology for easier handling
- Formulated to provide superior winter and summer performance
- Superior fluorescent pigment gives unmatched fade resistance
- Base and conical sections interlocked and fused to provide integral design
- New 8-Lug base design increases friction to prevent skidding
- Recessed cone collars to prevent damage while stacking
- Meets MUTCD and DOT standards
Specifications:
- Dimensions: 14" X 14" X 28"
- Weight: 10 lb
- Cone material: fluorescent orange injection-molded PVC, 100% recyclable
- Base material: black injection-molded PVC, made from 100% post-industrial recycled PVC
- Collar material: 3M™ 3340 Reflective Aluminum Foil
- Two 3M reflective collars - (1) 6" and (1) 4" collar
- Suitable for use in temperatures between
-13°F and 100°F (-25°C and 38°C)

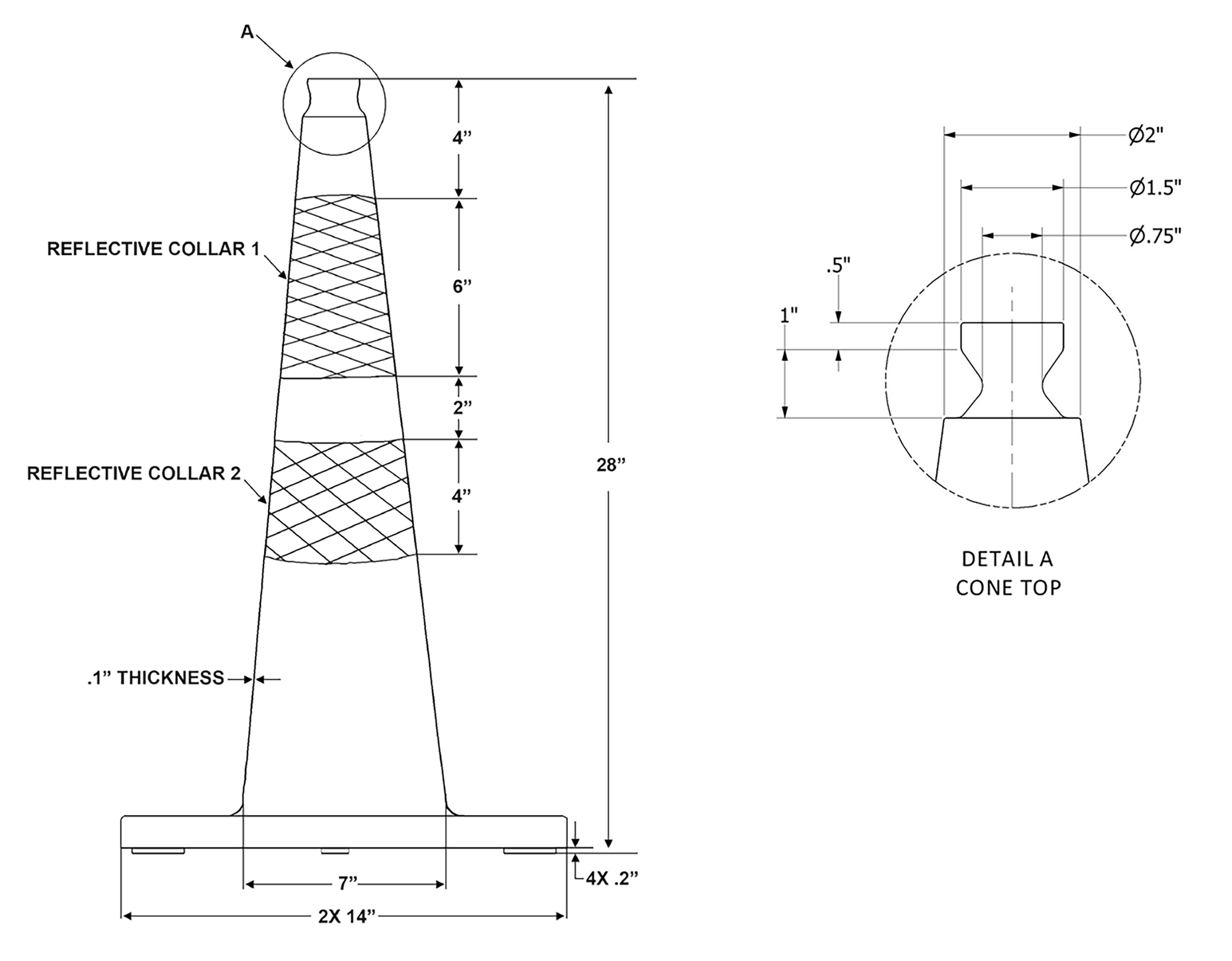

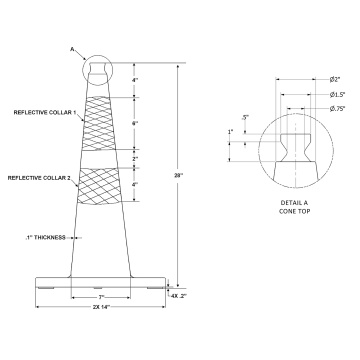

Size Specifications:
Cone Top Diameter | Cone Base Width | Cone Bottom Outer Width | Cone Bottom Inner Width |
1.5" | 14" | 7.7" | 2" |
